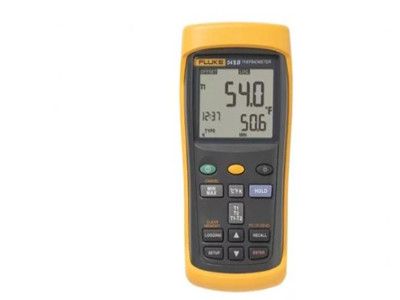

FLUKE 54 II B Data Logging Thermometer with Dual Input
New & Original with very competitive price and One year Warranty
Key features
* Large backlit dual display shows any combination of T1, T2 (52 and 54 only), T1-T2 (52 and 54 only), plus MIN, MAX, or AVG
* Recall function allows logged data to be easily reviewed on the meter display
* Infrared USB communication port allows data to be exported to optional FlukeView Forms® Temperature PC software for further analysis and graphing
* Data Logging up to 500 points of data with user adjustable recording interval
* Relative time clock on MIN, MAX, and AVG provides a time reference for major events
* Electronic Offset function allows compensation of thermocouple errors to maximize overall accuracy
* Measures J, K, T, E, R, S, and N-type thermocouples
* Readout in °C, °F, or Kelvin (K)
* Splash and dust resistant case protected by impact absorbing holster
* User-friendly front panel is easy to set up and operate
* Sleep mode increases battery life; typical 1000-hour battery life
* Battery door allows easy battery replacement without breaking the calibration seal
* Optional ToolPak accessory allows the thermometer to hang from any metal object (with the rare earth magnet)
or secure around a pipe (with hook-and-loop straps) for hands-free operation
Product overview: 54 II B Data Logging Thermometer with Dual Input
Laboratory accuracy. Wherever you go
Fluke 54 II B dual input digital thermometer can log up to 500 points of data to internal memory. Fast response and laboratory accuracy (0.05% + 0.3 °C).
Take contact temperature for checking motors, insulation, breakers, pipes, corroded connections,
liquids, and wires with industrial standard J, K, T, E, N, R, and S type thermocouple (temperature sensors).
Specifications: 54 II B Data Logging Thermometer with Dual Input
| General Specifications | ||
| Temperature accuracy | Above -100°C | J, K, T, E, and N-type: ±[0.05% + 0.3°C]1 |
| R and S-type: ±[0.05% + 0.4°C]1 | ||
| Below -100°C | J, K, E, and N-types: ±[0.20% + 0.3°C]1 | |
| T-type: ±[0.50% + 0.3°C] | ||
| Temperature | J-type | -210°C to 1200°C |
| K-type | -200°C to 1372°C | |
| T-type | -250°C to 400°C | |
| E-type | -150°C to 1000°C | |
| N-type | -200°C to 1300°C1 | |
| R and S-type | 0°C to 1767°C1 | |
| Temperature scale | ITS-90 | |
| Applicable standards | NIST-175 | |
| Display resolution | 0.1°C, 0.1 K < 1000 | |
| 1°C, 1 K ≥ 1000 | ||
| 1. Only the Fluke Models 53 II B and 54 II B thermometers are capable of measuring N, R, and S-type thermocouples. | ||
| Environmental Specifications | ||
| Operating temperature | -10°C to 50°C | |
| Storage temperature | -40°C to 60°C | |
| Humidity (without condensation) | 0% to 90%; 0°C to 35°C | |
| 0% to 70%; 0°C to 50°C | ||
| Safety Specifications | ||
| Overvoltage category | CSA C22.2 No. 1010.1 1992; EN 61010 Amendments 1,2 | |
| Agency approvals | CE, CSA, TÜV (pending) | |
| Mechanical and General Specifications | ||
| Size (L x W x D) | 173 x 86 x 38 mm | |
| Weight | 400 g | |
| Batteries | 3 AA batteries; typical 1000-hour life | |
