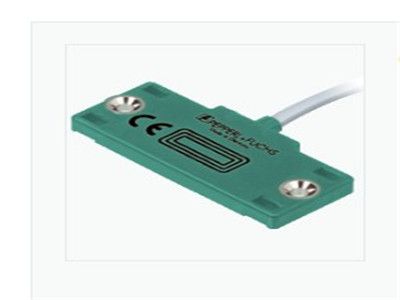

PEPPERL+FUCHS Capacitive sensor CBN5-F46-E2-10M Proximity Sensors Industrial Sensors
General specifications
Switching function Normally open (NO)
Output type PNP
Rated operating distance 5 mm
Installation non-flush
Output polarity DC
Assured operating distance 0 ... 3.5 mm
Nominal ratings
Installation conditions
B 0 mm
C 10 mm
F 20 mm / 50 mm
Operating voltage 10 ... 30 V
Switching frequency 0 ... 10 Hz
Hysteresis 1 ... 10 typ. 5 %
Reverse polarity protection reverse polarity protected
Short-circuit protection pulsing
Voltage drop ≤ 2 V
Operating current 0 ... 100 mA
Lowest operating current 0 mA
Off-state current 0 ... 0.5 mA typ. 0.01 mA
Off-state current TU =40 °C, switching element off ≤ 100 µA
No-load supply current ≤ 15 mA
Switching state indicator LED, yellow
