PEPPERL+FUCHS HOT OFFER ! Switch Amplifier KCD2-SON-Ex1 Intrinsic Safety Barriers Isolated Barriers K-System Competitive Price

New & Original
KCD2-SON-Ex1
PEPPERL+FUCHS HOT OFFER ! Switch Amplifier KCD2-SON-Ex1 Intrinsic Safety Barriers Isolated Barriers K-System Competitive Price
Please contact us for more information.

PEPPERL+FUCHS HOT OFFER ! Switch Amplifier KCD2-SON-Ex1 Intrinsic Safety Barriers Isolated Barriers K-System





Switch Amplifier KCD2-SON-Ex1

·         1-channel isolated barrier

·         24 V DC supply (Power Rail)

·         Dry contact or NAMUR input

·         2 passive transistor outputs (resistive acc. to EN 60947-5-6)

·         Line fault transparency (LFT)

·         Housing width 12.5 mm

·         Up to SIL 2 acc. to IEC 61508





Function :

This isolated barrier is used for intrinsic safety applications. The device transfers digital signals (NAMUR sensors or dry contacts)

from a hazardous area to a safe area.

The input controls two passive transistor outputs with a resistive output characteristic (acc. to EN60947-5-6).

The outputs have three defined states: 1-Signal = 1.8 Kilohm , 0- Signal = 14 Kilohm and fault > 100 Kilohm.

This output characteristic offers line fault transparency on the signal lines. Via switches the mode of operation can be reversed and the line

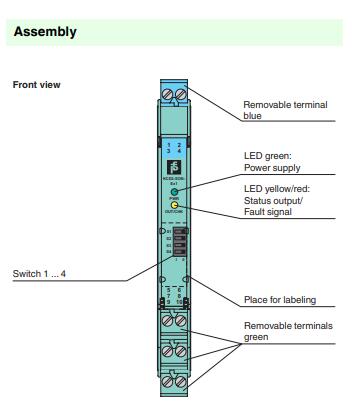

fault detection can be switched off. A fault is signalized by LEDs acc. to NAMUR NE44 and a separate collective error message output.






Selection models:

KCD2-SR-Ex1.LB                                      KCD2-SR-Ex2                                KFA6-DU-Ex1.D

KFA6-ER-Ex1.W.LB                                  KFA6-SOT2-Ex2                             KFA6-SR2-Ex1.W

KFA6-SR2-Ex1.W.LB                                KFA6-SR2-Ex2.W                           KFA6-SR2-Ex2.W.IR

KFD2-DU-Ex1.D



KFD2-ELD-Ex16                                       KFD2-ER-Ex1.W.LB                         KFD2-SH-Ex1

KFD2-SH-Ex1.T.OP                                  KFD2-SOT3-Ex1.LB                         KFD2-SOT3-Ex1.LB.IO

KFD2-SOT3-Ex2                                       KFD2-SOT3-Ex2.IO                         KFD2-SR2-Ex1.W

KFD2-SR2-Ex1.W.LB



KFD2-SR2-Ex2.W                                    KFD2-SR3-Ex2.2S                           KFD2-SRA-Ex4

KFD2-ST3-Ex1.LB                                   KFD2-ST3-Ex2                                 KHA6-SH-Ex1

KCD2-SON-Ex1                                       KCD2-SOT-Ex1.LB                           KCD2-SOT-Ex2

KCD2-SOT-Ex2.SP



KCD2-SR-Ex1.LB.SP                               KCD2-SR-Ex2.SP                             KCD2-ST-Ex1.LB

KCD2-ST-Ex2                                          KFA5-SOT2-Ex2                               KFA5-SR2-Ex1.W

KFA5-SR2-Ex1.W.LB                               KFA5-SR2-Ex2.W                             KFA5-SR2-Ex2.W.IR

KFD2-SH-Ex1.T



KFD2-SOT3-Ex2.IO-Y1                          KCD2-SON-Ex1.R1                         KCD2-SON-Ex1.SP

KCD2-SON-Ex2                                      KCD2-SON-Ex2.R1                         KCD2-SON-Ex2.SP

KCD2-SOT-Ex1.LB.SP                           KCD2-ST-Ex1.LB.SP                        KCD2-ST-Ex2.SP

KFA4-SR2-Ex2.W
