KFA5-SR2-Ex2.W
PEPPERL+FUCHS Recently HOT SELL ! Switch Amplifier KFA5-SR2-Ex2.W Intrinsic Safety Barriers Isolated Barriers K-System
Please contact us for more information.

PEPPERL+FUCHS Switch Amplifier KFA5-SR2-Ex2.W Intrinsic Safety Barriers Isolated Barriers K-System





Switch Amplifier KFA5-SR2-Ex2.W

·         2-channel isolated barrier

·         115 V AC supply

·         Dry contact or NAMUR inputs

·         Relay contact output

·         Line fault detection (LFD)

·         Reversible mode of operation

·         Up to SIL 2 acc. to IEC 61508/IEC 61511



Function :

This isolated barrier is used for intrinsic safety applications. It transfers digital signals

(NAMUR sensors/mechanical contacts) from a hazardous area to a safe area.

The proximity sensor or switch controls a form C changeover relay contact for the safe area load.

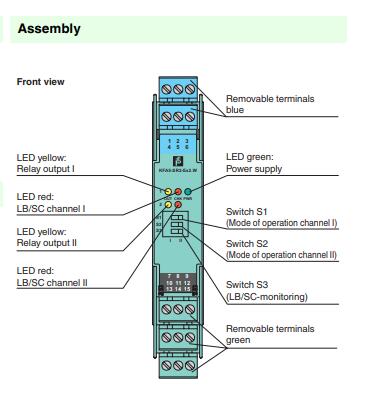

The normal output state can be reversed using switches S1 and S2. Switch S3 is used to enable or disable line fault detection of the field circuit.

During an error condition, the relays revert to their deenergized state and the LEDs indicate the fault according to NAMUR NE44.



KFA5-SR2-Ex2.W .jpg



Selection models:

KCD2-SR-Ex1.LB                                      KCD2-SR-Ex2                                KFA6-DU-Ex1.D

KFA6-ER-Ex1.W.LB                                  KFA6-SOT2-Ex2                             KFA6-SR2-Ex1.W

KFA6-SR2-Ex1.W.LB                                KFA6-SR2-Ex2.W                           KFA6-SR2-Ex2.W.IR

KFD2-DU-Ex1.D



KFD2-ELD-Ex16                                       KFD2-ER-Ex1.W.LB                         KFD2-SH-Ex1

KFD2-SH-Ex1.T.OP                                  KFD2-SOT3-Ex1.LB                         KFD2-SOT3-Ex1.LB.IO

KFD2-SOT3-Ex2                                       KFD2-SOT3-Ex2.IO                         KFD2-SR2-Ex1.W

KFD2-SR2-Ex1.W.LB



KFD2-SR2-Ex2.W                                    KFD2-SR3-Ex2.2S                           KFD2-SRA-Ex4

KFD2-ST3-Ex1.LB                                   KFD2-ST3-Ex2                                 KHA6-SH-Ex1

KCD2-SON-Ex1                                       KCD2-SOT-Ex1.LB                           KCD2-SOT-Ex2

KCD2-SOT-Ex2.SP



KCD2-SR-Ex1.LB.SP                               KCD2-SR-Ex2.SP                             KCD2-ST-Ex1.LB

KCD2-ST-Ex2                                          KFA5-SOT2-Ex2                               KFA5-SR2-Ex1.W

KFA5-SR2-Ex1.W.LB                               KFA5-SR2-Ex2.W                             KFA5-SR2-Ex2.W.IR

KFD2-SH-Ex1.T



KFD2-SOT3-Ex2.IO-Y1                          KCD2-SON-Ex1.R1                         KCD2-SON-Ex1.SP

KCD2-SON-Ex2                                      KCD2-SON-Ex2.R1                         KCD2-SON-Ex2.SP

KCD2-SOT-Ex1.LB.SP                           KCD2-ST-Ex1.LB.SP                        KCD2-ST-Ex2.SP

KFA4-SR2-Ex2.W
