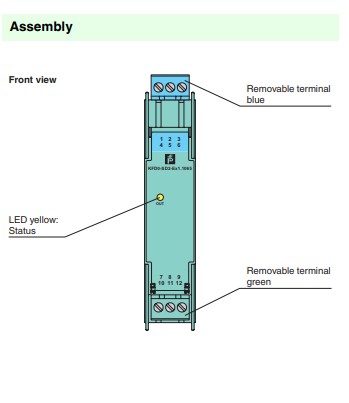

Solenoid Driver KFD0-SD2-Ex1.1065
1-channel isolated barrier
24 V DC supply (loop powered)
Current limit 65 mA at 9.8 V DC
Up to SIL 3 acc. to IEC 61508
This isolated barrier is used for intrinsic safety applications. It supplies power to solenoids, LEDs, and audible alarms
located in a hazardous area. It is loop powered, so the available energy at the output is received from the input signal.
The output signal has a resistive characteristic. As a result the output voltage and current are dependent on the load and
the input voltage. At full load, 9.8 V at 65 mA is available for the hazardous area application.
