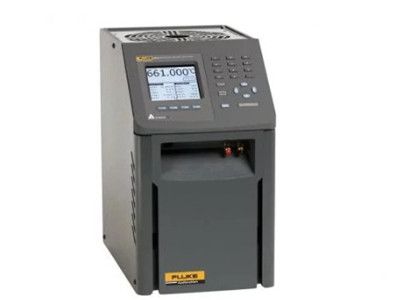

Fluke Calibration 9173 Field Metrology Well

100% New & Original with very competitive price and One year Warranty

Product overview: Fluke Calibration 9173 Field Metrology Well

Accurate enough for lab use, and rugged and portable enough to take anywhere

Best-performing industrial heat sources (accuracy, stability, uniformity) in the world
Immersion depth to 203 mm (8 in)
Optional ITS-90 reference input reads PRTs to ±0.006 °C
Temperature range from –45 °C to 700 °C

Every once in a while, a new product comes around that changes the rules. It happened when we introduced handheld dry-wells.

It happened when we introduced Micro-Baths.

Now we’ve combined bath-level performance with dry-well functionality and legitimate reference thermometry to create Metrology Wells.

With groundbreaking new proprietary electronics from Fluke Calibration's (patents pending), Metrology Wells let you bring lab-quality

performance into whatever field environment you might work in. New analog and digital control techniques provide stability as good as ±0.005 °C. And with dual-zone control,

axial (or “vertical”) uniformity is as good as ±0.02 °C over a 60 mm (2.36 in) zone. (That’s 60 mm!)

Such performance doesn’t exist anywhere else outside of fluid baths.

In short, there are six critical components of performance in an industrial heat source (which the European metrology community explains,

for example, in the document EA-10/13): calibrated display accuracy, stability, axial (vertical) uniformity, radial (well-to-well) uniformity, impact from loading,

and hysteresis. We added a seventh in the form of a legitimate reference thermometer input and created an entirely new product category: Metrology Wells.

(By the way, Metrology Wells are the only products on the market supported by published specifications addressing

every performance category in the EA-10/13. Our specs aren’t just hopes or guidelines. They apply to every Metrology Well we sell.)

Specifications: Fluke Calibration 9173 Field Metrology Well

Specifications
Range (at 23°C ambient)	50°C to 700°C1 (122°F to 1292°F)
Display accuracy	±0.2°C: 50°C to 425°C ±0.25°C: 425°C to 660°C
Stability	±0.005°C: 50°C to 100°C ±0.01°C: 100°C to 425°C ±0.03°C: 425°C to 700°C
Axial uniformity	±0.1°C: 50°C to 100°C ±0.25°C: 100°C to 425°C ±0.4°C: 425°C to 700°C
Radial uniformity	±0.01°C: 50°C to 100°C ±0.025°C: 100°C to 425°C ±0.04°C: 425°C to 700°C
Loading effect (with a 6.35 mm reference probe and three 6.35 mm probes)	±0.02°C at 425°C ±0.04°C at 700°C
Hysteresis	0.07°C
Well depth	203 mm (8 in)
Resolution	0.001°C
Display	LCD, °C or °F, user-selectable
Key pad	Ten key with decimal and ± button. Function keys, menu key, and °C / °F key.
Cooling time	235 min: 700°C to 50°C 153 min: 700°C to 100°C
Heating time	46 min: 50°C to 700°C
Size (H x W x D)	366 x 203 x 323 mm (14.4 x 8 x 12.7 in)
Weight	15 kg (33 lb)
Power	115 V AC (±10%), or 230 V AC (±10%), 50/60 Hz, 1025 W
Computer interface	RS-232 Interface with 9930 Interface-it control software included
Traceable calibration (NIST)	Data at 100°C, 200°C, 350°C, 500°C, and 660°C
1. Calibrated to 660°C; reference thermometer recommended at higher temperatures.
Specifications	Built-in Reference Input
Temperature range	–200°C to 962°C (–328°F to 1764°F)
Resistance range	0 Ω to 400 Ω, auto-ranging
Characterizations	ITS-90 subranges 4, 6, 7, 8, 9, 10, and 11 Callendar-Van Dusen (CVD): R0, a, b, d
Resistance accuracy	0 Ω to 20 Ω: 0.0005 W 20 Ω to 400 Ω: 25 ppm
Temperature accuracy (does not include probe uncertainty)	10 Ω PRTs: ±0.013°C at 0°C ±0.014°C at 155°C ±0.019°C at 425°C ±0.028°C at 700°C	25 Ω and 100 Ω PRTs: ±0.005°C at –100°C ±0.007°C at 0°C ±0.011°C at 155°C ±0.013°C at 225°C ±0.019°C at 425°C ±0.027°C at 661°C
Resistance resolution	0 Ω to 20 Ω: 0.0001 Ω 20 Ω to 400 Ω: 0.001 Ω
Measurement period	1 second
Probe connection	4-wire with shield, 5-pin DIN connector
Calibration	NVLAP accredited (built-in reference input only), NIST-traceable calibration provided

Models: Fluke Calibration 9173 Field Metrology Well

Fluke 9173-AFluke Calibration 9173-A Metrology Well

Insert “A”, Al-Brnz, Misc Holes

50°C to 700°C

Fluke 9173-BFluke Calibration 9173-B Metrology Well

Insert “B”, Al-Brnz, Comparison Holes

50°C to 700°C

Fluke 9173-CFluke Calibration 9173-C Metrology Well

Insert “C”, Al-Brnz, 0.25-inch Holes

50°C to 700°C

Fluke 9173-DFluke Calibration 9173-D Metrology Well

Insert “D”, Al-Brnz, Comparison Metric Holes

50°C to 700°C

Fluke 9173-EFluke Calibration 9173-E Metrology Well

Insert “E”, Al-Brnz, Misc Metric Holes, w/ 0.25-inch Ref Hole

50°C to 700°C

Fluke 9173-FFluke Calibration 9173-F Metrology Well

Insert “F”, Al-Brnz, Metric Comparison Holes, w/ 0.25-inch Ref Hole

50°C to 700°C

Fluke 9173-A-RFluke Calibration 9173-A-R Metrology Well

Insert “A”, Al-Brnz, Misc Holes

50°C to 700°C

Fluke 9173-B-RFluke Calibration 9173-B-R Metrology Well

Insert “B”, Al-Brnz, Comparison Holes

50°C to 700°C

Fluke 9173-C-RFluke Calibration 9173-C-R Metrology Well

Insert “C”, Al-Brnz, 0.25-inch Holes

50°C to 700°C

Fluke 9173-D-RFluke Calibration 9173-D-R Metrology Well

Insert “D”, Al-Brnz, Comparison Metric Holes

50°C to 700°C

Fluke 9173-E-RFluke Calibration 9173-E-R Metrology Well

Insert “E”, Al-Brnz, Misc Metric Holes, w/ 0.25-inch Ref Hole

50°C to 700°C

Fluke 9173-F-RFluke Calibration 9173-F-R Metrology Well

Insert “F”, Al-Brnz, Metric Comparison Holes, w/ 0.25-inch Ref Hole

50°C to 700°C
