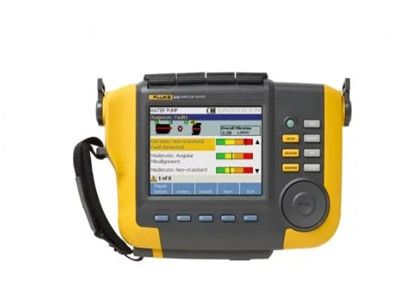

Fluke 810 Vibration Tester

100% New & Original with very competitive price and One year Warranty

Key features

* On-board identification and location of the most common mechanical faults (bearings, misalignment, unbalance, looseness)

focus maintenance efforts on root cause, reducing unplanned downtime

* Overall vibration level allows you to quickly assess overall machine health directly from the diagnosis screen

* Fault severity scale with four severity levels helps you prioritize maintenance work

* Repair recommendations advise technicians on corrective action

* Detailed diagnostic reports and spectral diagrams help confirm data quality, and narrow down the root cause of failures

* On-board context sensitive help provides real-time tips and guidance to new users

* Flexible machine speed configurations gives the ability to test a broad range of assets including belt drives, gear boxes, and bevel gears

* 2 GB expandable on-board memory provides enough space for your machinery’s data

* Self-test function ensures optimal performance and more time on the job

* Laser tachometer for accurate machine running speed promotes confident diagnoses

* Tri-axial accelerometer reduces measurement time by 2/3 over single axis accelerometers

* Viewer PC Software expands data storage and tracking capacity

Product overview: Fluke 810 Vibration Tester

The Fluke 810 Vibration Tester is the most advanced troubleshooting tool for mechanical maintenance teams who need an answer now.

The unique diagnostic technology helps you quickly identify and prioritize mechanical problems, putting the expertise of a vibration analyst in your hands.

You take pride in your facility, your team, and your work. You do what it takes to keep things up and running, but sometimes there is

not enough time or resources to keep up with the workload, let alone be proactive about mechanical maintenance.

The Fluke 810 Vibration Tester puts you one step ahead by coupling a powerful diagnostic engine with a

simple step-by-step process to report on specific machine faults and their severity the first time measurements are taken, without prior measurement history.

Overall vibration measurements and spectral diagrams give technicians the ability to quickly asses overall machine health,

while enhanced reporting and actionable recommendations give you the confidence you need to address critical problems first.

Specifications: Fluke 810 Vibration Tester

Diagnostic Specifications
Standard Faults	Unbalance, looseness, misalignment and bearing failures
Analysis For	Motors, fans, blowers, belts and chain drives, gearboxes, couplings, centrifugal pumps, piston pumps, sliding vane pumps, propeller pumps, screw pumps, rotary thread/gear/lobe pumps, piston compressors, centrifugal compressors, screw compressors, closed coupled machines, spindles
Motor Rotational Speed Range	200 rpm to 12000 rpm
Diagnosis Details	Plain-text diagnosis, fault severity (slight, moderate, serious, extreme), repair details, cited peaks, spectra

Electrical Specifications
Ranging	Automatic
A/D Converter	4 channel, 24 bit
Usable Bandwidth	2 Hz to 20 kHz
Sampling	51.2 Hz
Digital Signal Processing Functions	Automatically configured anti-alias filter, high-pass filter, decimation, overlapping, windowing, FFT, and averaging
Sampling Rate	2.5 kHz to 50 kHz
Dynamic Range	128 dB
Signal To Noise Ratio	100 dB
FFT Resolution	800 lines
Spectral Windows	Hanning
Frequency Units	Hz, orders, cpm
Amplitude Units	in/sec, mm/sec, VdB (US), VdB* (Europe)
Non-volatile Memory	SD micro memory card, 2 GB internal + user accessible slot for additional storage

General Specifications
Dimensions (H x D x W)	18.56 x 7.00 x 26.72 cm (7.30 x 2.76 x 10.52 in)
Weight (With Battery)	1.9 kg (4.2 lb)
Display	¼ VGA, 320 × 240 Color (5.7 inch diagonal) TFT LCD with LED backlight
Input/Output Connections	Triaxial sensor connection	4 pin M12 connector
	Single axis sensor connection	BNC connector
	Tachometer Connection	Mini DIN 6 pin connector
	PC Connection	Mini ‘B’ USB (2.0) connector
Battery	Battery type	Lithium-ion, 14.8 V, 2.55 Ah
	Battery charging time	Three hours
	Battery discharge time	Eight hours (under normal conditions)
AC Adapter	Input voltage	100 VAC to 240 VAC
AC Adapter	Input frequency	50/60 Hz
Operating System	WinCE 6.0 Core
Language Support	English, French, German, Italian, Japanese, Portuguese, Simplified Chinese, Spanish
Warranty	Three-years

Environmental Specifications
Operating Temperature	0°C to 50°C (32°F to 122°F)
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Operating Humidity	10% to 95% RH (non-condensing)
Agency Approvals	CHINA RoHS, CSA, CE, C TICK, WEEE
Electromagnetic Compatibility	EN 61326-1:2006, EN 61010:1:2001 2nd ed.

Sensor Specifications
Sensor Type	Accelerometer
Sensitivity	100 mV/g (±5%, 25°C)
Acceleration Range	80 g peak
Amplitude Nonlinearity	1%
Frequency Response	Z	2 - 7,000 Hz ±3dB
Frequency Response	X, Y	2 - 5,000 Hz ±3dB
Power Requirement (IEPE)	18 VDC to 30 VDC, 2 mA to 10 mA
Bias Output Voltage	12 VDC
Grounding	Case grounded
Sensing Element Design	PZT ceramic / shear
Case Material	316L stainless steel
Mounting	10-32 captive socket head screw, 2-pole rare earth magnet (48 lb pull strength)
Output Connector	4-Pin, M12
Mating Connector	M12 - F4D
Non-volatile Memory	TEDS 1451.4 compatible
Vibration Limit	500 g peak
Shock Limit	5000 g peak
Electromagnetic Sensitivity, Equivalent g	100 μg/gauss
Sealing	Hermetic
Temperature Range	-50°C to 120°C (-58°F to 248°F) ±7%
Warranty	One-year

Tachometer Specifications
Dimensions (D x W)	2.86 x 12.19 cm (1.125 x 4.80 in)
Weight	96 g (3.4 oz) with cable
Power	Powered by 810 Vibration Tester
Detection	Laser Diode Class 2
Range	6.0 to 99,999 rpm
Accuracy	6.0 to 5999.9 rpm	±0.01% and ±1 digit
Accuracy	5999.9 to 99999 rpm	±0.05% and ±1 digit
Resolution	0.1 rpm
Effective Range	1 cm to 100 cm (0.4 in to 39.27 in)
Response Time	1 second (> 60 rpm)
Controls	Measure on/off transparent button
Interface	6 Pin Mini DIN
Cable Length	50 cm (19.586 in)
Warranty	One-year
Tachometer Accessories	Reflective tape	1.5 x 52.5 cm (0.59 x 20.67 in)

Viewer PC Software
Minimum Hardware Requirements	1 GB RAM
Operating System Requirements	Windows 7, 8.1, and 10
