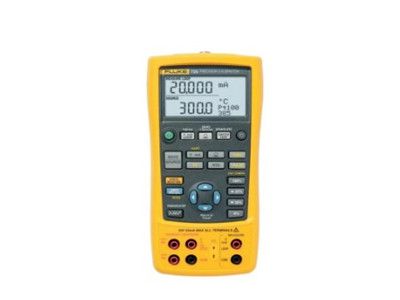

Fluke 726 Precision Multifunction Calibrators

100% New & Original with very competitive price and One year Warranty

Key features

* Precision multifunction process calibrator designed specifically for the process industry

* Delivers precise measurement and calibration source performance with accuracies of 0.01%.

* Stores up to eight calibration results in memory for later analysis

* Offers HART mode that inserts a 250 ohm resistor in mA measure and source for compatibility with HART instrumentation

Product overview: Fluke 726 Precision Multifunction Calibrators

Fluke 726 Precision Multifunction Process Calibrator designed specifically for the process industry

The Fluke 726 is a precise and powerful, yet easy-to-use field calibrator.

It features broad workload coverage, calibration power, and unsurpassed accuracy needed by process professionals.

It measures and sources almost all process parameters to calibrate almost anything. Use it to test sensors and valves and test and calibrate transmitters.

The 726 interprets results without the help of a calculator and stores measurement data for later analysis.

Specifications: Fluke 726 Precision Multifunction Calibrators

Measurement Accuracy
Voltage DC	30.000 V	0.01% + 2 mV (upper display)
	20.000 V	0.01% + 2 mV (lower display)
	90.00 mV	0.01% + 10 μV
	-10.00 mV to 75.00 mV	0.025% + 1 count (via TC connector)
Current DC	24.000 mA	0.01%+ 2 mA
Resistance	0.0 to 4000.0 Ω	± 0.015%
Frequency	2.0 to 1000.0 CPM	0.05% + 0.1 cpm
	1.0 to 1000.0 Hz	0.05% + 0.1 Hz
	1.00 to 15.00 kHz	0.05% + 0.01 kHz
	Sensitivity	1 V peak-to-peak-minimum
Pressure	Accuracy from 0.025% of range using any of 29 pressure modules (for detailed specifications refer to pressure modules in options and accessories). Modules available for differential, gauge, vacuum, absolute, dual and high pressure.
Source Accuracy
Voltage DC	100.00 mV	0.01% + 10 μV
	20.000 V	0.01% + 2 mV
	-10.00 mV to 75.00 mV	0.025% + 1 count (via TC connector)
Current DC	24.000 mA (Source)	0.01% + 2 μA
Current DC	24.000 mA (Simulate)	0.01% + 2 μA
Resistance	Range, accuracy (percent of reading + floor) and excitation current	5 to 400 Ω, 0.015% + 0.1 Ω, 0.1 to 0.5 mA
		5 to 400 Ω, 0.015% + 0.05 Ω, 0.5 to 3 mA
		400 to 1500 Ω, 0.015% + 0.5 Ω, 0.05 to 0.8 mA
		1500 to 4000 Ω, 0.015% + 0.5 Ω, 0.05 to 0.4 mA
Frequency	2.0 to 1000.0 CPM	0.05%
	1.0 to 1000.0 Hz	0.05%
	1.0 to 10.0 kHz	0.25%
	10.0 to 15.0 kHz	0.5%
	Waveform	5 V p-p squarewave, -0.1 V offset
