Product description
Contact us

PEPPERL+FUCHS Transmitter Power Supply KFU8-CRG2-1.D New & Original with very competitive price and One year Warranty

1-channel signal conditioner
Universal usage at different power supplies
Input 2-wire and 3-wire transmitters and 2-wire current sources
Output 0/4 mA ... 20 mA
2 relay contact outputs
Adjustable energized/de-energized delay
Programmable high/low alarm
Linearization function (max 20 points)
Line fault detection (LFD)
Up to SIL 2 acc. to IEC 61508/IEC 61511

Datasheet excerpt: Technical data of KFU8-CRG2-1.D

General specifications
Signal type		Analog input
Functional safety related parameters
Safety Integrity Level (SIL)		SIL 2
Supply
Connection		terminals 23, 24
Rated voltage		20 ... 90 V DC or 48 ... 253 V AC
Power dissipation		2 W / 3 VA
Power consumption		2.2 W / 4 VA
Interface
Programming interface		programming socket
Input
Connection side		field side
Connection		terminals 1, 2, 3
Input I
	Input signal	0/4 ... 20 mA
	Available voltage	> 15 V at 20 mA
	Open circuit voltage/short-circuit current	24 V / 33 mA
	Input resistance	45 Ω (terminals 2, 3)
	Line fault detection	breakage I < 0.2 mA; short-circuit I > 22 mA
Output
Connection side		control side
Connection		output I: terminals 10, 11, 12 output II: terminals 16, 17, 18 Output: analog terminals 8+, 7-
Output signal		0 ... 20 mA or 4 ... 20 mA
Output I, II		signal, relay
	Contact loading	250 V AC / 2 A / cos φ ≥ 0.7 ; 40 V DC / 2 A
	Mechanical life	5 x 10⁷ switching cycles
Output III		Signal, analog
	Current range	0 ... 20 mA or 4 ... 20 mA
	Open loop voltage	max. 24 V DC
	Load	max. 650 Ω
	Fault signal	downscale I ≤ 3.6 mA, upscale I ≥ 21.5 mA (acc. NAMUR NE43)
Energized/De-energized delay		0 ... 250 s , adjustable
Transfer characteristics
Input I
	Accuracy	< 30 µA
	Influence of ambient temperature	0.003 %/K (30 ppm)
Output I, II
	Response delay	≤ 200 ms at bounce from 0 ... 20 mA
Output III
	Resolution	≤ 10 µA
	Accuracy	< 20 µA
	Influence of ambient temperature	0.005 %/K (50 ppm)
	Reaction time	< 650 ms at bounce from 0 ... 20 mA at the input, 90 % of output full-scale value
Galvanic isolation
Input/Other circuits		reinforced insulation according to IEC/EN 61010-1, rated insulation voltage 300 V_eff
Output I, II/other circuits		reinforced insulation according to IEC/EN 61010-1, rated insulation voltage 300 V_eff
Mutual output I, II, III		reinforced insulation according to IEC/EN 61010-1, rated insulation voltage 300 V_eff
Output III/power supply		reinforced insulation according to IEC/EN 61010-1, rated insulation voltage 300 V_eff
Interface/power supply		reinforced insulation according to IEC/EN 61010-1, rated insulation voltage 300 V_eff

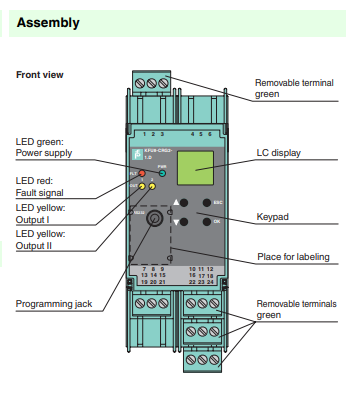

Indicators/settings
Display elements		LEDs , display
Control elements		Control panel
Configuration		via operating buttons via PACTware
Labeling		space for labeling at the front
Directive conformity
Electromagnetic compatibility
	Directive 2014/30/EU	EN 61326-1:2013 (industrial locations)
Low voltage
	Directive 2014/35/EU	EN 61010-1:2010
Conformity
Electromagnetic compatibility		NE 21:2006
Degree of protection		IEC 60529:2001
Ambient conditions
Ambient temperature		-20 ... 60 °C (-4 ... 140 °F)
Mechanical specifications
Degree of protection		IP20
Connection		screw terminals
Mass		300 g
Dimensions		40 x 119 x 115 mm (1.6 x 4.7 x 4.5 inch) , housing type C3
Mounting		on 35 mm DIN mounting rail acc. to EN 60715:2001
