PEPPERL+FUCHS Signal Converter with Trip Value KFU8-USC-1.D
New & Original with very competitive price and One year Warranty
1-channel signal conditioner
Universal usage at different power supplies
Scaleable current or voltage input
Current or voltage output
Relay contact output

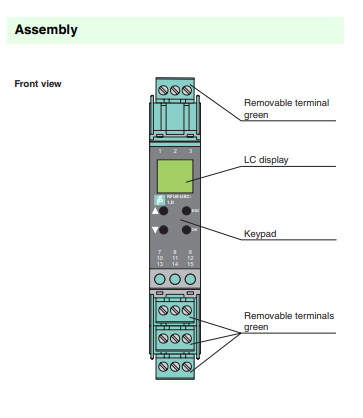

Configurable by keypad
Line fault detection (LFD)
Datasheet excerpt: Technical data of KFU8-USC-1.D
| General specifications | ||
|---|---|---|
| Signal type | Analog input | |
| Supply | ||
| Connection | terminals 14, 15 | |
| Rated voltage | 20 ... 90 V DC / 48 ... 253 V AC | |
| Rated current | ≤ 80 mA DC / ≤ 45 mA AC | |
| Power consumption | ≤ 1.6 W / ≤ 2.6 VA | |
| Input | ||
| Connection side | field side | |
| Connection | terminals 1+, 3- : mV, V ; terminals 2+, 3- : mA | |
| Input resistance | voltage: 1 MΩ , current: max. 100 Ω | |
| Limit | 30 V | |
| Current | 0 ... 20 mA | |
| Voltage | 0 ... 10 V / 0 ... 60 mV | |
| Resolution | 15 Bit | |
| Output | ||
| Connection side | control side | |
| Connection | output I: terminals 10, 11, 12 output II: terminals 7-, 8+, 9- | |
| Output I | signal, relay | |
| Contact loading | 250 V AC/2 A/cos φ 0.7; 40 V DC/2 A | |
| Mechanical life | 2 x 107 switching cycles | |
| Energized/De-energized delay | approx. 10 ms / approx. 10 ms | |
| Output II | analog | |
| Load | current: max. 550 Ω , voltage: min. 1 kΩ | |
| Analog voltage output | 0/1 ... 5 V , 0/2 ... 10 V | |
| Analog current output | 0/4 ... 20 mA | |
| Transfer characteristics | ||
| Deviation | 0.1 % of full-scale value | |
| Resolution/accuracy | current: 1 µA/20 µA voltage: 0.5 mV/10 mV mV: 3 µV/60 µV | |
| Influence of ambient temperature | 0.003 %/K (30 ppm) | |
| Reaction time | ≥ 150 ms/≤ 300 ms | |
| Galvanic isolation | ||
| Input/Output | reinforced insulation according to IEC 61140, rated insulation voltage 300 Veff | |
| Input/power supply | reinforced insulation according to IEC 61140, rated insulation voltage 300 Veff | |
| Output/power supply | reinforced insulation according to IEC 61140, rated insulation voltage 300 Veff | |
| Indicators/settings | ||
| Display elements | display | |
| Control elements | Control panel | |
| Configuration | via operating buttons | |
| Labeling | space for labeling at the front | |
| Directive conformity | ||
| Electromagnetic compatibility | ||
| Directive 2004/108/EC | EN 61326-1:2006 | |
| Low voltage | ||
| Directive 2006/95/EC | EN 50178:1997 | |
| Conformity | ||
| Electromagnetic compatibility | NE 21 | |
| Degree of protection | IEC 60529 | |
| Protection against electrical shock | IEC 61140 | |
| Ambient conditions | ||
| Ambient temperature | -20 ... 60 °C (-4 ... 140 °F) | |
| Mechanical specifications | ||
| Degree of protection | IP20 | |
| Connection | screw terminals | |
| Mass | 150 g | |
| Dimensions | 20 x 119 x 115 mm (0.8 x 4.7 x 4.5 inch) , housing type B3 | |
| Mounting | on 35 mm DIN mounting rail acc. to EN 60715:2001 | |
