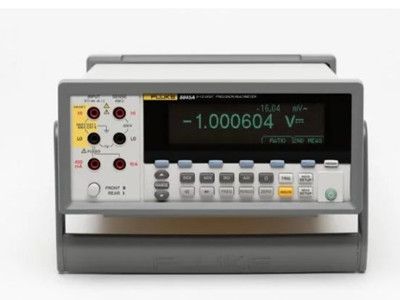

Fluke 8845A 6.5 Digit Precision Multimeter

New & Original with very competitive price and One year Warranty

Key features

Precision and versatility for bench or systems applications

* 6.5 digit resolution

* Basic V DC accuracy of up to 0.0024%

* Dual display

* 100 μA to 10 A current range, with up to 100 pA resolution

* Wide ohms range from 10 Ω to 1 GΩ with up to 10 μΩ resolution

* 2 x 4 ohms 4-wire measurement technique

* Measure frequency and period

* Fluke 45 and Agilent 34401A emulation

* Graphical display

* Trendplot™ paperless recorder mode, statistics, histogram

* CAT I 1000 V, CAT II 600 V

* One -year warranty

Product overview: Fluke 8845A 6.5 Digit Precision Multimeter

The Fluke 8845A 6.5 digit precision multimeter has the precision and versatility to handle your most demanding measurements, on the bench or in a system.

This meter is both high performance and feature rich, yet also remarkably easy to use.

This digital multimeters performs the functions you would expect to see in a multifunction DMM, including measuring volts, ohms, and amps.

Basic V dc accuracy of up to 0.0024%, 10 A current range, and a wide ohms range give you an unbeatable combination of measurement capability.

You can also use the 8845A to measure frequency and period. The functions of a counter, capacitance meter, and thermometer are built in for unparalleled versatility.

Extend the meter’s utility even more with its graphical display modes, including Trendplot™ paperless recorder mode, statistics and histograms—features you won’t find on other multimeters.

Of course, this meter is also durable and dependable, features you expect from any Fluke meter.

This unique combination of features and performance makes the 8845A an unbeatable value for a wide variety of applications,

including manufacturing test, research and development, and service.

The 8845A features a unique dual display that allows you to measure two different parameters of the same signal from one test connection.

To reveal signal quality issues like drift, intermittants and stability, view data as a real time trend plot or histogram, with the unique analyze mode.

You won’t find graphical display capabilities like these on any other instrument in this class.

Specifications: Fluke 8845A 6.5 Digit Precision Multimeter

Technical Specifications
Display	VFD dot matrix
Resolution	6.5 Digits
V DC	Range	100 mV to 1000 V
	Max. resolution	100 nV
	Accuracy	8845A: 0.0035 + 0.0005 (% measurement + % of range)
V AC	Range	8845A: 100 mV to 750 V
	Max. resolution	100 nV
	Accuracy	8845A: 0.06 + 0.03 (% measurement + % of range)
	Frequency	3 Hz to 300 KHz
Resistance	2 x 4 Wire	Yes
	Range	8845A: 100 Ω to 100 MΩ
	Max. resolution	8845A: 100 μΩ
	Accuracy	8845A: 0.010 + 0.001 (% measurement + % of range)
A DC	Range	100 μA to 10 A
	Max. resolution	100 pA
	Accuracy	0.050 + 0.005 (% measurement + % of range)
A AC	Range	8845A: 10 mA to 10 A
	Max. resolution	8845A: 10 nA
	Accuracy	0.10 + 0.04 (% measurement + % of range)
	Frequency	3 Hz to 10 kHz
Freq/period	Range	8845A: 3 Hz to 300 kHz
	Max. resolution	1 μHz
	Accuracy	0.01%
Continuity / diode test	Yes
Math functions	NULL, Min/Max/Average, Std Dev
dB/dBm	Yes
Advanced functions	Statistics/histogram	Yes
	Trendplot	Yes
	Limit test	Yes
Input output
Input output	Interfaces	RS 232, IEE-488.2, Ethernet, USB (with optional adaptor)
General Specifications
Weight	3.6 kg (8.0 lbs)
Dimensions	88 x 217 x 297 mm (3.46 x 8.56 x 11.7 in)
Calibration documentation	17025 accredited report of calibration included
Safety	Designed to comply with IEC 61010-1:2000-1, UL 61010-1A1, CAN/CSA-C22.2 No. 61010.1, CAT I 1000V/CAT II 600V
Warranty	One years
