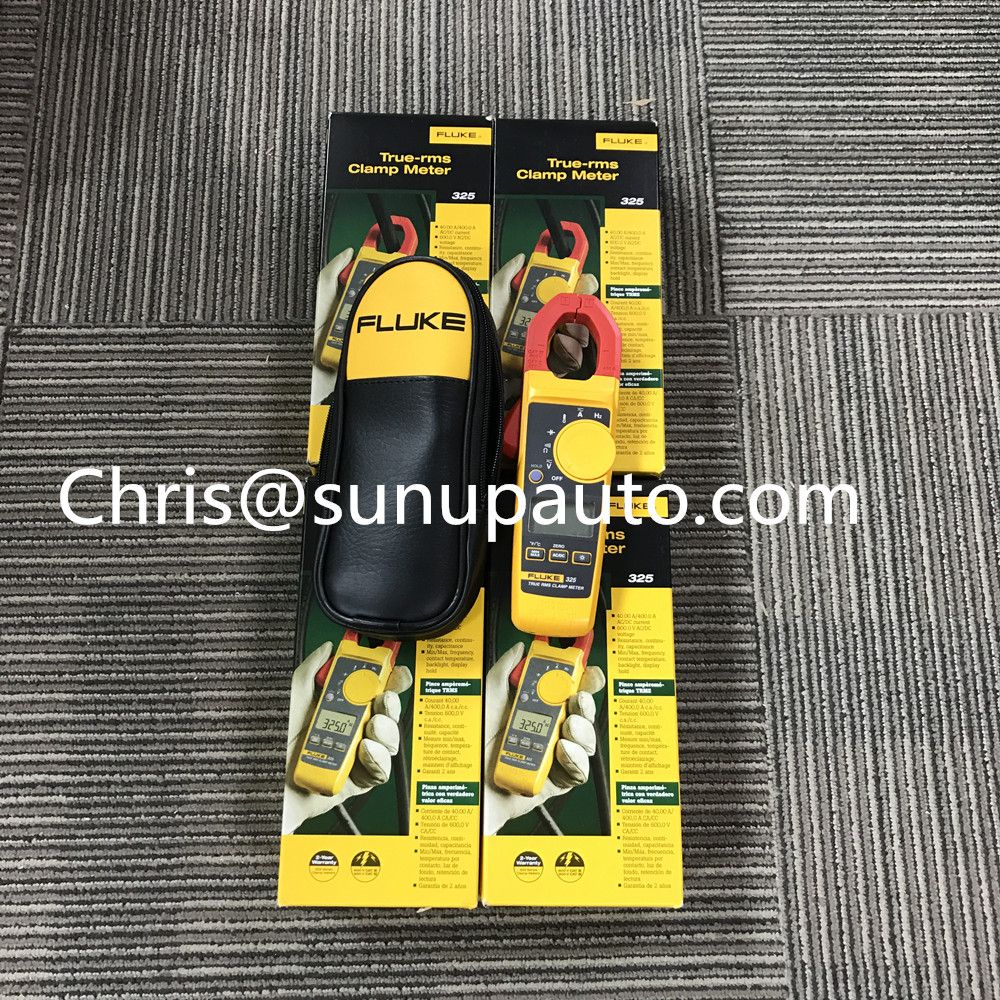

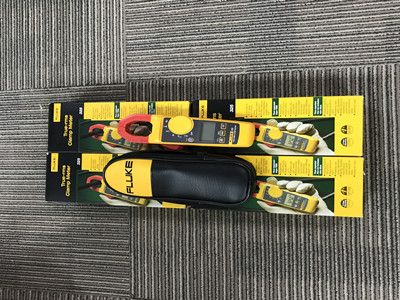

Fluke 325 True RMS Clamp Meter New & Original with very competitive price and One year Warranty

New & Original

325

Need a Quote?

Please contact us for more information.

Product description
Contact us

Fluke 325 True RMS Clamp Meter New & Original with very competitive price and One year Warranty

Key features

* Rugged, reliable True-RMS clamp meter with dc current and frequency measurements

* Measures AC and DC current to 400 A

* Measures AC voltage and DC voltage to 600 V

* Provides True RMS AC voltage and current for accurate measurements on non-linear signals

* Measures resistance to 40 kΩ with continuity detection

* Measures frequency to 500 Hz

Product overview: Fluke 325 True RMS Clamp Meter

The Fluke 325 True-RMS Clamp Meter is a reliable, versatile troubleshooting tool for commercial and residential electricians, featuring True-RMS measurements,

a slim design for easy transport and use, and a large display for efficient troubleshooting. With the addition of DC Current and Frequency, it has everything you’ll need to troubleshoot.

Troubleshoot problems safely and accurately

* CAT III 600 V, CAT IV 300 V safety rating

* Provides True RMS AC voltage and current for accurate measurements on non-linear signals

* Measures AC/DC current up to 400 A

* Measures AC/DC voltage to 600V

* Measures resistance to 40 kΩ with continuity detection ≤ 30Ω

* Measures temperature from -10C to 400C

* Measures capacitance to 1000µF

* Measures frequency from 5Hz to 500Hz

* Min/Max function records important values

* Backlight and hold function captures a reading on the display

* Comes with one -year warranty and soft carrying case

Specifications: Fluke 325 True RMS Clamp Meter

Specifications
AC current	Range	40.00 A / 400.0 A
	Accuracy	2% ± 5 digits (45 Hz to 65 Hz) 2.5% ± 5 digits (65 Hz to 400 Hz)
DC current	Range	40.00 A / 400.0 A
	Accuracy	2% ± 5 digits
AC voltage	Range	600.0 V
	Accuracy	1.5% ± 5 digits
DC voltage	Range	600.0 V
	Accuracy	1.0% ± 5 digits
Resistance	Range	400.0 Ω / 4000 Ω / 40.00 kΩ
	Accuracy	1.0% ± 5 digits
Continuity		≤ 30 Ω
Capacitance		0 to 100.0 μF / 100μF to 1000 μF
Frequency		5.0 Hz to 500.0 Hz
AC response		True-RMS
Backlight		Yes
Data hold		Yes
Contact temperature		-10.0°C to 400.0°C (14.0°F to 752.0°F)
Min/Max		Yes
Size	H x W x D (mm)	207 x 75 x 34
	Max wire diameter	30 mm (600 MCM)
	Weight	283 g
Category rating		CAT III 600 V CAT IV 300 V
Warranty		One -year

FLUKE 325
