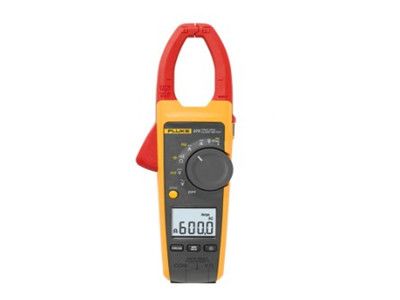

Fluke 375 True RMS AC/DC Clamp Meter New & Original with very competitive price and One year Warranty

New & Original

375

Need a Quote?

Please contact us for more information.

Product description
Contact us

Fluke 375 True RMS AC/DC Clamp Meter New & Original with very competitive price and One year Warranty

Key features

* iFlex flexible current probe expands the measurement range to 2500 A AC while providing increased display flexibility, ability to measure awkward sized conductors and improved wire access.

* CAT IV 600 V, CAT III 1000 V

* True RMS AC voltage and current for accurate measurements on non-linear signals

* 500 mV DC measurement range to interface with other accessories

* Integrated low pass filter and state of the art signal processing allows for use in noisy electrical environments while providing stable readings

* Proprietary inrush measurement technology to filter out noise and capture motor starting current exactly as the circuit protection sees it

* Ergonomic design fits in your hand and can be used while wearing protective equipment

* Large, easy to read backlight display automatically sets the correct measurement range so you do not need to change the switch positions while taking a measurement

* One -year warranty

* Soft carrying case

Product overview: Fluke 375 True RMS AC/DC Clamp Meter

Be ready for anything.

With True RMS AC voltage and current measurements, the Fluke 375 Clamp Meter can read up to 600 V and 600 A in both AC and DC modes,

and is capable of frequency measurement up to 500 Hz.

Additionally, the 375 is compatible with the new iFlex flexible current probe (sold separately), which expands the measurement range to 2500 A AC.

Specifications: Fluke 375 True RMS AC/DC Clamp Meter

Electrical Specifications
AC Current via Jaw
Range		374 and 375 376	600.0 A 999.9 A
Resolution			0.1 A
Accuracy			2% ± 5 digits (10-100 Hz) 2.5% ± 5 digits (100-500 Hz)
Crest Factor (50/60 Hz)			3 @ 500 A (375 and 376 only) 2.5 @ 600 A 1.42 @1000 A (376 only) Add 2% for C.F. > 2
AC Current via Flexible Current Probe
Range			2500 A
Resolution		374 and 375	0.1 A (≤ 600 A) 1 A (≤ 2500 A)
		376	0.1 A (≤ 999.9 A) 1 A (≤ 2500 A)
Accuracy			3% ±5 digits (5 – 500 Hz)
Crest Factor (50/60Hz)			3.0 at 1100 A (375 and 376 only) 2.5 at 1400 A 1.42 at 2500 A Add 2% for C.F. > 2
Distance from Optimum		i2500-10 Flex	i2500-18 Flex	Error
	A	0.5 in (12.7 mm)	1.4 in (35.6 mm)	± 0.5%
	B	0.8 in (20.3 mm)	2.0 in (50.8 mm)	± 1.0%
	C	1.4 in (35.6 mm)	2.5 in (63.5 mm)	± 2.0%
Measurement uncertainty assumes centralized primary conductor at optimum position, no external electrical or magnetic field, and within operating temperature range.
DC Current
Range		374 and 375 376	600.0 A 999.9 A
Resolution			0.1 A
Accuracy			2% ± 5 digits
AC Voltage
Range		374 and 375 376	600.0 V 1000 V
Resolution		374 and 375 376	0.1 V 0.1 V (≤ 600.0 V) 1 V (≤ 1000 V)
Accuracy			1.5% ± 5 digits (20 – 500 Hz)
DC Voltage
Range		374 and 375 376	600.0 V 1000 V
Resolution		374 and 375 376	0.1 V 0.1 V (≤ 600.0 V) 1 V (≤ 1000 V)
Accuracy			1% ± 5 digits
mV dc
Range		375 and 376	500.0 mV
Resolution			0.1 mV
Accuracy			1% ± 5 digits
Frequency via Jaw
Range		375 and 376	5.0 - 500.0 Hz
Resolution			0.1 Hz
Accuracy			0.5% ± 5 digits
Trigger Level			5 – 10 Hz, ≥10 A
			10 – 100 Hz, ≥5 A
			100 – 500 Hz, ≥10 A
Frequency via Flexible Current Probe
Range		375 and 376	5.0 - 500.0 Hz
Resolution			0.1 Hz
Accuracy			0.5% ± 5 digits
Trigger Level			5 – 20 Hz, ≥ 25 A
			20 – 100 Hz, ≥ 20 A
			100 – 500 Hz, ≥ 25 A
Resistance
Range		374 375 and 376	6000 Ω 60 kΩ
Resolution		374	0.1 Ω (≤ 600 Ω) 1 Ω (≤ 6000 Ω)
		375 and 376	0.1 Ω (≤ 600 Ω) 1 Ω (≤ 6000 Ω) 10 Ω (≤ 60 kΩ)
Accuracy			1% ± 5 digits
Capacitance
Range			1000 μF
Resolution			0.1 μF (≤ 100 μF) 1 μ F (≤ 1000 μF)
Accuracy			1% ± 4 digits
Mechanical Specifications
Size (L x W x H)			246 mm x 83 m x 43 mm
Weight			388 g
Jaw Opening			34 mm
Flexible Current Probe Diameter			7.5 mm
Flexible Current Probe Cable Length (head to electronics connector)			1.8 m
Environmental Specifications
Operating Temperature			10°C – +50°C
Storage Temp			-40°C – +60°C
Operating Humidity			Non condensing (< 10 –°C) ≤ 90% RH (at 10°C – 30°C) ≤ 75% RH (at 30°C – 40°C) ≤ 45% RH (at 40°C – 50°C)
Operating Altitude			3000 meters
Storage Altitude			12,000 meters
EMC			EN 61326-1:2006
Temperature Coefficients			Add 0.1 x specified accuracy for each degree C above 28°C or below 18°C
Safety Specifications
Safety Compliance			CAN/CSA-C22.2 No. 61010-1-04 ANSI/UL 61010-1:2004 ANSI/ISA-61010-1 (82.02.01):2004 EN/IEC 61010-1:2001 to 1000V Measurement Category (CAT) III 600V Measurement Category (CAT) IV Pollution Degree 2 EN/IEC 61010-2-032:2002 EN/IEC 61010-031:2002+A1:2008
Agency Approvals
Batteries			2 AA, NEDA 15A, IEC LR6
