Endress + Hauser Capacitance Point level detection Liquipoint FTW23 New & Original With very Competitive price
- Product description
- Contact us

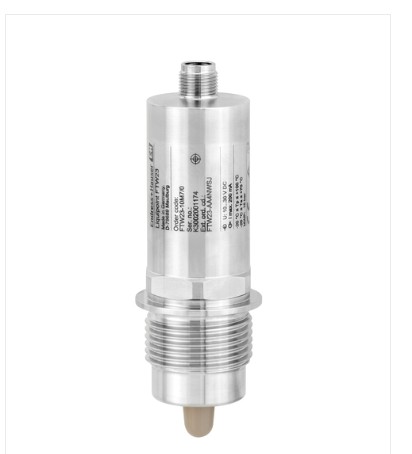

Endress + Hauser Capacitance Point level detection Liquipoint FTW23
Cost effective point level switch for water-based liquids
The Liquipoint FTW23 is developed and built for the food industry and meets all international hygiene requirements.
The device also fits perfectly for industrial applications in all industries. It is intended for use in applications in liquid media without build-up.
The IO-Link capability allows easy parameter setting.
Efficient:
- Cost effective
- Function check with test magnet
Easy:
- No calibration or adjustment required
- Plug & play without any specific tools
- IO-Link connectivity
Benefits
Easy installation thanks to compact design, even in tight conditions or where access is restricted
IO-Link reduces costs and complexity due to easy configuration of the devices via engineering tools
CIP and SIP cleanability ensured - up to protection class IP 69
Individual adjustment to each medium not necessary
LED display for on-site function check
Field of application
For use in storage tanks, mixing vessels and pipes. For water-based liquids; Ex works for media with dielectric
constant > 20, with adjustment via IO-Link for media with dielectric constant > 1.5 discernible.
Process connections: Threads
Temperature: -20 to +100°C (-4 to +212°F), CIP/SIP to 135°C (275°F) for 1 hour
Pressure: -1 to 16bar abs (-14.5 to 232psi)
Hygienic certificates
