HOT SALE NOVOTECHNIK TH1-0425-102-423-101 Transducer up to 425 mm touchless TH1 Series Brand New
- Product description
- Contact us

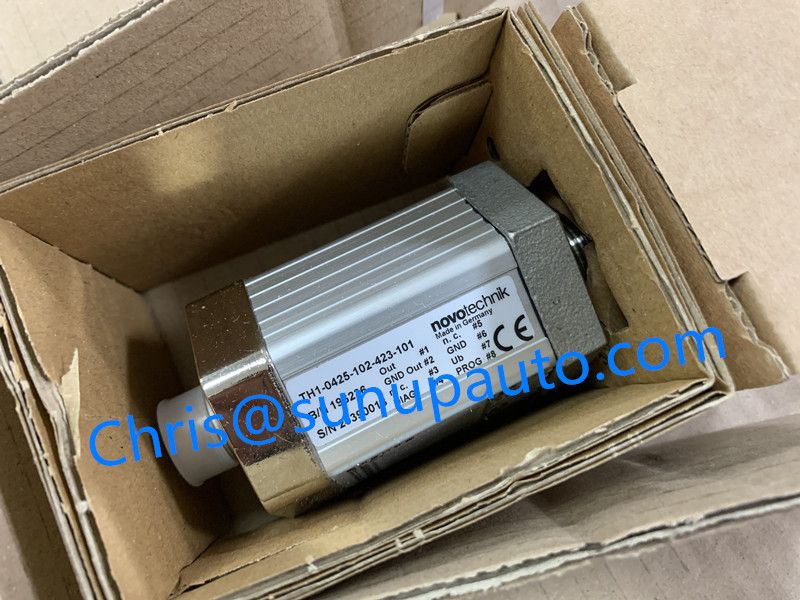

NOVOTECHNIK TH1-0425-102-423-101 Transducer
Special features
• Touchless magnetostrictive measurement technology
• Rod style transducer, integratable
• Non-contacting position detection with ring shaped position marker
• Unlimited mechanical life
• Resolution up to 1 µm, independently of length
• Low temperature coefficient <15 ppm/K
• Position-Teach-In
• Insensitive to shock and vibration
• Operating pressure up to 350 bar
• Protection class IP67 / IP68
• Interfaces: Analog, SSI, Impulse, CANopen, IO-Link
Applications
• Fluid Power
Pneumatic- or Hydraulic Cylinder
• Manufacturing Engineering
• Mobile Machinery
High precision transducer with touchless magnetostrictive technology for mechanically decoupled and therefore wear-free
position measurement for lengths up to 4250 mm. The integrable and pressure-resistant rod design with passive
ring position markers allow the use inside of hydraulic cylinders. Here, the pressure area is sealed by an O-ring on the flange.

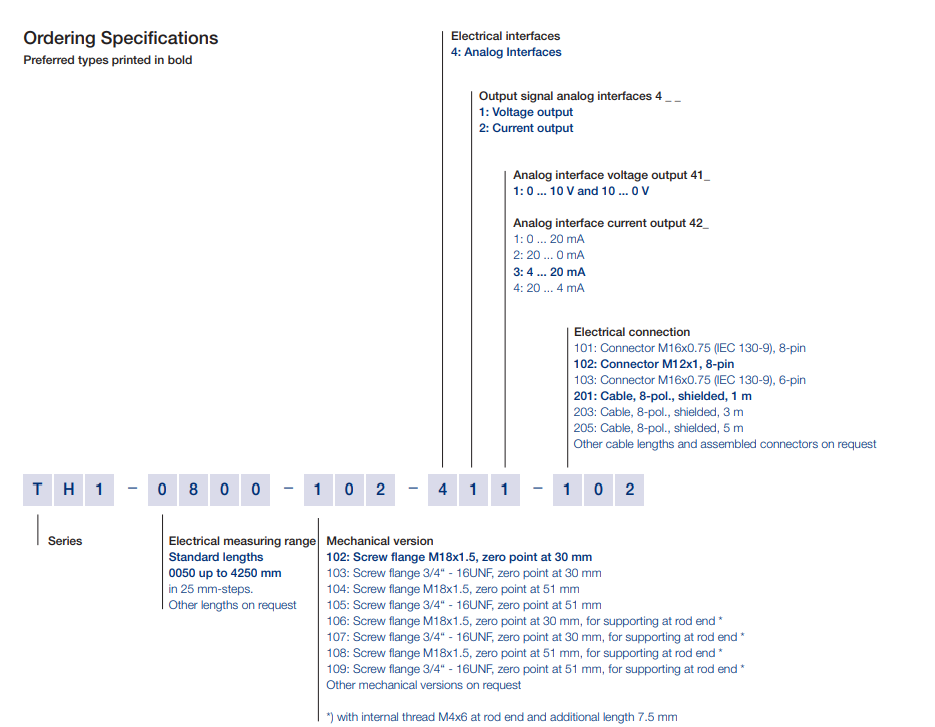

Model No examples : TH1-0425-102-423-101 , L=425MM
TH1-0100-102-411-102 , L =100MM
There have More items , all for 100% New & Original with very good discount , pls kindly contact with Chris directly to know more details information .
