BUHLER Level- and temperature switch Nivotemp NT 61, NT 61D, NT 61-HT Brand New with Good Discount

100% New & Original with very competitive price and One year Warranty
NT 61, NT 61D, NT 61-HT
BUHLER Level- and temperature switch Nivotemp NT 61, NT 61D, NT 61-HT Brand New with Good Discount
Please contact us for more information.

BUHLER Level- and temperature switch Nivotemp NT 61, NT 61D, NT 61-HT Brand New with Good Discount



In hydraulics and lubrication technology the fill level of oil tanks needs to be monitored continuously. Here, modern factory

automation requires compatible signals. Despite central system control, visualising the current level on the actual tanks is often

desired. To minimise production costs and the space required on containers, it makes sense to use one monitor for both e.g.

the fill level and oil temperature. The Nivotemp series meets virtually all requirements arising in this area of application.


NT 61

Connecting flange as per DIN 24557 Part 2

Various plug options

Up to 4 switching outputs for liquid level or 2 switching

outputs for liquid level plus Pt100 or analog output for

temperature

Proven and tested highly dynamic float system

Immersion tube length up to 1.5 m (longer upon request)

suitable for up to 230 V AC/DC (varies by version)

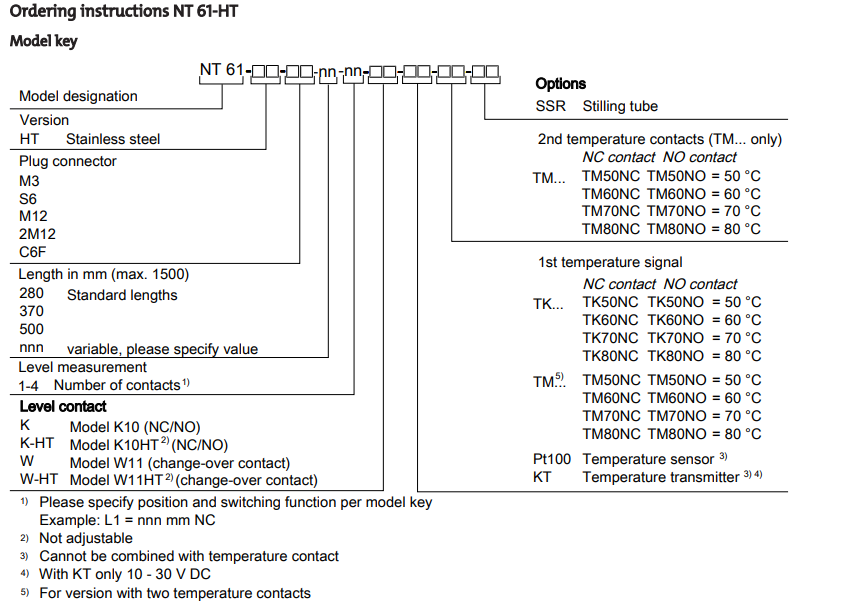

NT 61-HT (used for HFC+HFA oils) for temperatures up to 150 °C

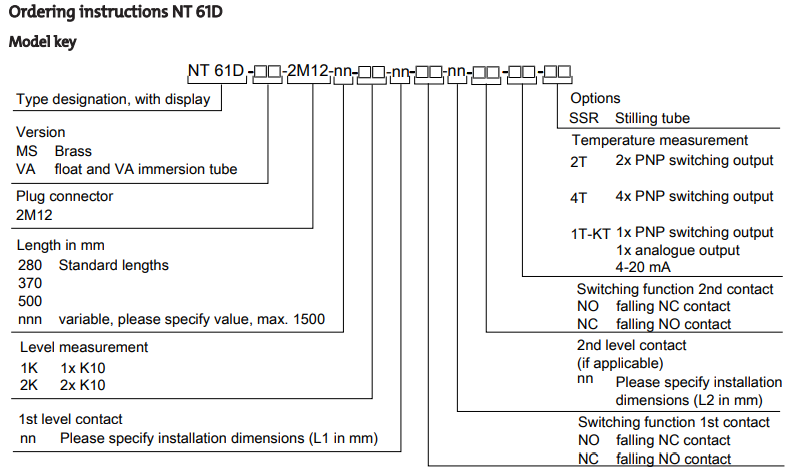

NT 61D

LED display swivels 270°

Up to 4 programmable temperature switching outputs

Alternatively, continuous temperature signal plus one freely

programmable switching output)

Characteristics of switching outputs configurable as frequency

output (1-100 Hz)

Standard menu structure based on VDMA standard sheet

24574 ff.

Min/max memory, logbook function

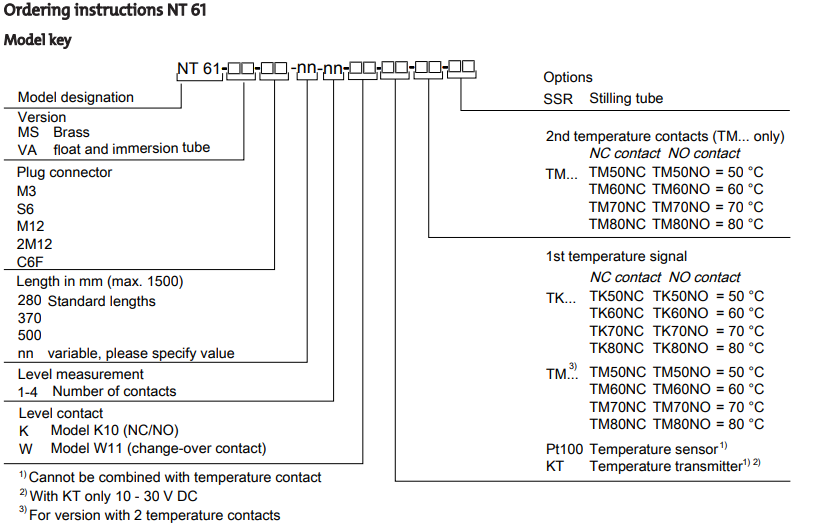

Ordering example

You require: Level switch MS version, plug connector S6, length L= 550 mm, 2 level contacts (NO/NC) and temperature contact

80 °C as NC contact, 1st contact 100 mm NC, 2nd contact 470 mm NO

Order NT 61-MS-S6-550-2-K-T80NC, L1=100 NC L2=470 NO

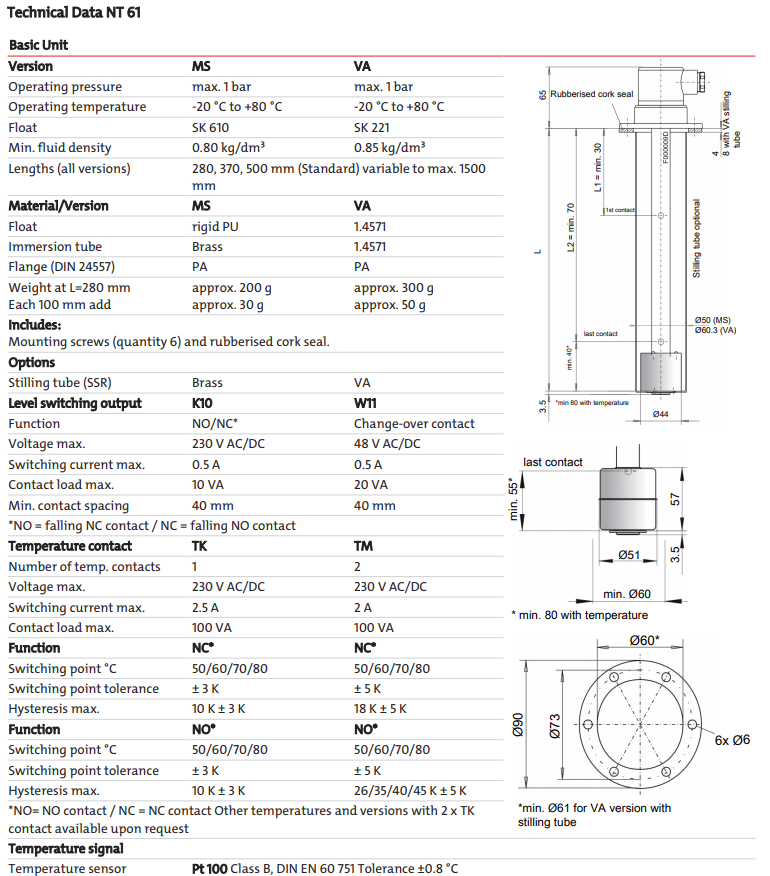

NT 61 details1


NT 61 details2
