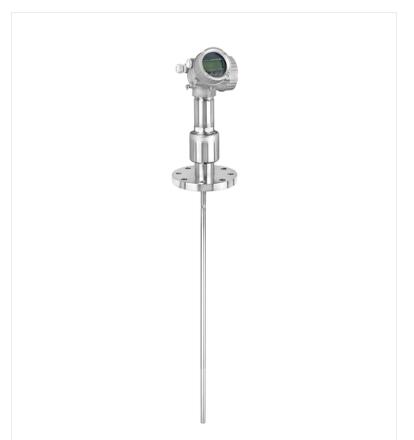

Endress + Hauser Guided radar measurement Time-of-Flight Levelflex FMP54
For high temperature and high pressure applications in the oil & gas, chemical and power industry
Levelflex FMP54 for continuous level measurement in liquids under extreme conditions. The process connection
with its ceramic-graphite seal safeguards high temperature and high pressure applications as they occur in steam
boilers and toxic media like ammonia. The gas tight feedthrough guarantees additional safety.
Only the gas phase compensation of the FMP54 gives reliable results in case of gas and steam phases.
Reliable measurement in case of moving surface and foam or in changing medias.
Benefits
Reliable measurement even for changing product and process conditions
HistoROM data management concept for fast and easy commissioning, maintenance and diagnostics
Highest reliability due to new Multi-Echo Tracking evaluation
Hardware and software developed according to IEC 61508 up to SIL3
Heartbeat Technology for a cost-effective and safe plant operation during the entire life cycle
Seamless integration into control or asset management systems and intuitive,
menu-guided operation concept (on-site or via the control system)
World's easiest proof test for SIL and WHG saves time and costs
Field of application
Version with rod, rope or coax probe.
Process connections: Thread or flange
Temperature: -196 to +450°C (-320 to +842°F)
Pressure: -1 to +400bar (-14.5 to +5,800psi)
Maximum measuring range: Rod 10m (33ft), rope 45m (148ft), coax 6m (20ft)
Accuracy: rod ±2mm (0.08")
International explosion protection certificates, overfill prevention WHG, SIL, marine approval, steam boiler approval, 5-point linearity protocol
