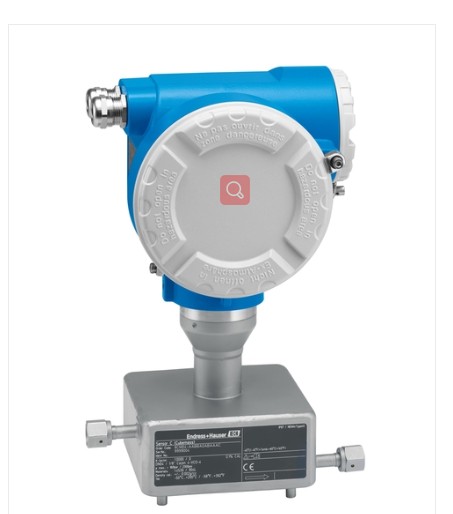

Endress + Hauser Cubemass Coriolis flowmeter

The ultra-compact sensor for smallest quantities with easy system integration

In many applications like lacquering, surface finishing, small quantities of substances have to be precisely measured or added.

Whether in laboratory applications or on test stands, whether in chemistry or in the oil sector – the lightweight high

pressure Cubemass in ultra-compact design is the specialist for direct mass and density measurement.

Benefits

Reduced installation cost – compact single-tube design

Fewer process measuring points – multivariable measurement (flow, density, temperature)

Space-saving installation – no in/outlet run needs

Cost savings – very low power consumption

Fast commissioning – pre-configured devices

Automatic recovery of data for servicing

Field of application

Measuring principle operates independently of physical fluid properties such as viscosity or density

For smallest quantities of liquids and gases; ideal for skid integration.

Device properties

Nominal diameter: DN 1 to 6 (1/24 to 1/4")

Process pressure up to 400 bar (5800 psi)

Medium temperature up to +200 °C (+392 °F)

Robust transmitter housing

Modbus RS485

Pulse output
