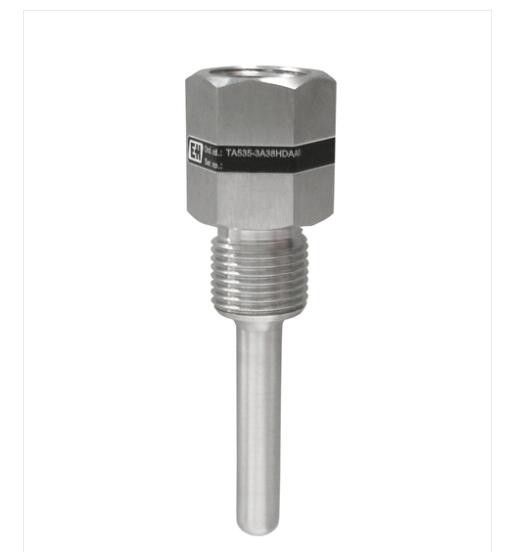

Endress + Hauser Omnigrad TA535 Thermowell for temperature sensors

For use in general purpose industrial applications and processes generating medium to high stress

The thermowell with a hexagonal extension is employed in industrial applications which generate medium to high stress.

For pipes or tanks that have threaded process connections.

It can accommodate sensors with a diameter of 6 mm (0.24 in) and can also be used in combination with thermometers

without a thermowell. It is available with NPT, gas and M20 connections (on thermometer and process sides).

Benefits

Several types of process connections can be selected as standard

Several outer diameters can be selected as standard

Connections to the thermometer: ½" NPT, G ½” and M20x1.5 thread

Made in SS 316L / 1.4404

The material certification can be selected as standard

Field of application

The thermowell with a hexagonal extension is employed in industrial applications which generate

medium to high stress. For pipes or tanks that have threaded process connections. It can accommodate sensors

with a diameter of 6 mm (0.24 in) and can also be used in combination with thermometers without a thermowell.
