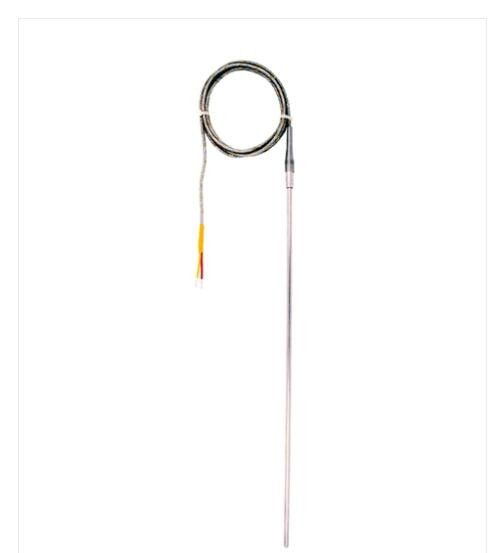

Endress + Hauser Omnigrad T TSC310 Thermocouple sensor cable probe

Cost efficient thermocouple sensor designed for use in many process and laboratory applications

The thermocouple (TC) cable probe is easy to install and provide a high operational safety due to reliable

and accurate temperature measurement in common processes. The probe is specially suited to temperature

 measurement in machinery, laboratory equipment and plants in gaseous or liquid medium like air, water, oil, etc.

Without additional thermowell the probe sheath is directly in contact with the process medium.

This enables to detect rapid temperature changes fast and accurate.

Benefits

High flexibility through user-specific insertion lengths and variable process connections

Fast response time

Different types of thermocouples according to DIN EN 60584 and ASTM E230/ANSI MC96.1: type J (Fe-CuNi), type K (NiCr-Ni)

Types of protection for use in hazardous locations: Intrinsic Safety (Ex ia) and non-Sparking (Ex nA)

NEPSI approval (Ex ia)

Field of application

The resistance thermometer is specially suited to temperature measurement in machinery,

power stations and plants in gaseous or liquid media like air, steam, water and oil
