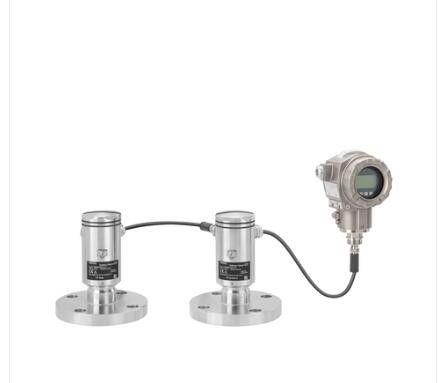

Endress + Hauser Electronic differential pressure Deltabar FMD72

Electronic differential pressure system utilizing two metal sensor modules and one transmitter

The electronic dp Deltabar FMD72 is a differential pressure system, used to measure the pressure, level, volume

or mass of liquids in pressurized tanks or distillation columns/evaporators. The high pressure sensor (HP) measures the hydrostatic pressure.

The low pressure sensor (LP) measures the head pressure. The level is calculated in the transmitter using these two digital values.

The electronic dp system eliminates issues of traditional differential pressure measurements.

Benefits

Eliminates traditional mechanical issues resulting in greater process availability and reliability

Safety risks are minimized with the new electronic differential pressure system architecture and design

Lowest total cost of ownership due to reduced installation time, maintenance, downtime and spare requirements

Multivariable level measurement: HART-based differential pressure, head pressure and sensor temperatures from one system

Continuous health indication of the entire system via HART-based diagnostic

High reproducibility and long-term stability

Process safety assured with small flush mounted process connections in hygienic applications

Field of application

For differential pressure, level, volume or mass measurement of liquids in pressurized tanks and distillation columns/evaporators.

Process connections: Threads, flanges and hygienic connections

Process temperature: -40 to +125°C (-40 to +257°F), optional 250°C (480°F)

Measuring range: 400mbar to +40bar (6 to 600psi)

Accuracy: Single sensor up to ±0.05%, system up to ±0.07%

International explosion protection certificates, hygienic approvals
