Endress + Hauser FMR51-BCLCCDBDD2CHJ+AIF3JBPB Radar measurement Time-of-Flight Micropilot FMR51 New & Original With very Competitive price

New & Original

FMR51-BCLCCDBDD2CHJ+AIF3JBPB

Please contact us for more information.

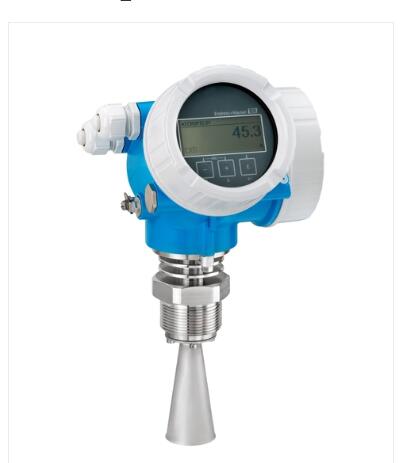

Endress + Hauser Radar measurement Time-of-Flight Micropilot FMR51 FMR51-BCLCCDBDD2CHJ+AIF3JBPB

The standard sensor for highest demands in liquid level measurement

Micropilot FMR51 for level measurement even under extreme process conditions like high temperature and high pressure

in the oil & gas and chemical industry. The FMR51 free space radar offers maximum reliability due to an innovative

and patented sensor-design. Micropilot is used for continuous, non-contact level measurement of liquids, pastes and slurries.

The measurement is not affected by changing media, temperature changes, gas blankets or vapors. Remote access via SmartBlue app is available.

Benefits

Hardware and software developed according to IEC 61508 up to SIL3 (in homogeneous redundancy)

HistoROM data management concept for fast and easy commissioning, maintenance and diagnostics

Highest reliability even in the presence of obstructions in the vessel due to new Multi-Echo Tracking evaluation

Heartbeat Technology for a cost-effective and safe plant operation during the entire life cycle

Seamless integration into control or asset management systems and intuitive, menu-guided operation concept (on-site or via the control system)

World's easiest proof test concept for SIL and WHG saves time and cost

Highest safety due to double ceramic coupling and gas-tight feedthrough

Field of application

Horn antenna for level measurement even under extreme conditions.

Process connections: Thread, Tri-Clamp or flange

Temperature: -196 to +450°C (-321 to + 842°F)

Pressure: -1 to +160bar (-14.5 to +2,320psi)

Maximum measuring range: 40m (131ft), 70m (230ft) for enhanced dynamics

Accuracy: ±2mm

K-band: 26GHz

International explosion protection certificates, overfill prevention WHG, SIL, marine approvals, 5-point linearity protocol

Remote access with SmartBlue App via Bluetooth® is available
