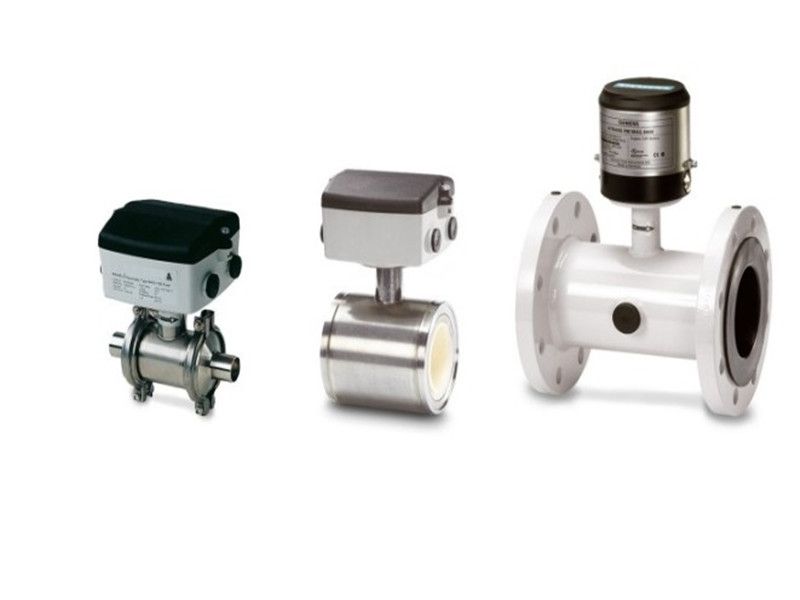

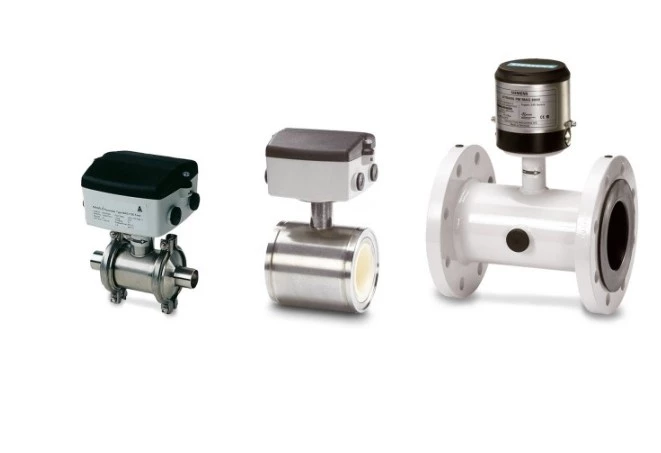

SIEMENS SITRANS F M MAG 1100 F Electromagnetic flow measurement

The SITRANS F M MAG 1100 F sensor is especially designed for the food & beverage and pharmaceutical

industries and is available with hygienic and flexible process connections.

Benefits

Sensor sizes: DN 10 to DN 100 (3/8" to 4")
AISI 316 stainless steel enclosure
Sensor: Hygienic connection, 3A approval and EHEDG certified
Sanitary design for CIP/SIP cleaning
Easy commissioning, the SENSORPROM unit automatically updates settings
Hose proof IP67/NEMA 4X enclosure rating
Designed that patented in-situ verification can be conducted. Using SENSORPROM fingerprints.

Application

The main applications of the SITRANS F M electromagnetic sensors can be found in the following fields:

Food industry
Beverage industry
Pharmaceutical industry

Design

Unique mechanical design with a wide range of customer specified sanitary connection
Compact or remote mounting possible easy “plug & play” field changeable
Simple on site upgrade to IP68/NEMA 6P terminal box
ATEX 2G D version for hazardous areas (ceramic liner)

Technical specifications

Measuring principle	Electromagnetic induction
Excitation frequency (Mains supply: 50 Hz/60 Hz)	DN 10 … 65 (¼" … 2½"): 12.5 Hz/15 Hz DN 80 … 100 (3", 4"): 6.25 Hz/7.5 Hz
Process connection
Nominal size	DN 10 … DN 100 (3/8" … 4")
Process connection	Hygienic adapters available for:
	Direct welding onto pipe
	Clamp fitting
	Threaded fitting

Certificates and approvals
Calibration
Standard Production calibration	Zero-point, 2 x 25 %, 2 x 90 %
Hazardous areas
MAG 1100 F (Ceramic)
Ex-sensor in compact or remote version with MAG 6000 I Ex	ATEX, EAC Ex Zone 1 Ex d e ia IIB T6 Gb ATEX Zone 21 Ex tD A21 IP67
Standard sensor in compact or remote version with MAG MAG 5000/6000/6000 I Ex	FM NI Class I Div. 2 Groups A, B, C, D
MAG 1100 F (PFA)
Standard sensor in compact or remote version with MAG MAG 5000/6000/6000 I Ex	FM NI Class I Div. 2 Groups A, B, C, D
Hygienic
MAG 1100 F (Ceramic)	3A (remote version with Polyamide terminal box)
MAG 1100 F (PFA)	3A (remote version with Polyamide terminal box) EHEDG (remote version with Polyamide terminal box, DN 25 ... 100 /1 ... 4") Hygienic EC 1935:2004 European food contact material
Pressure equipment	PED - 2014/68/EU
Others	EAC (Russia, Belarus, Kazakhstan) KCC (South Korea)
