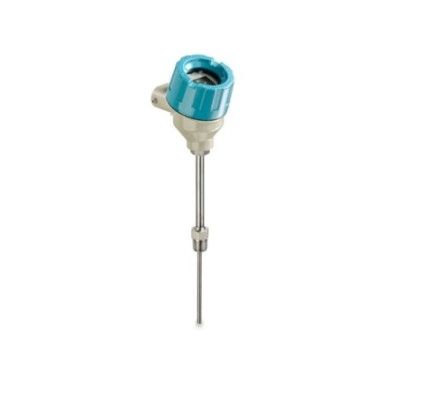

SIEMENS SITRANS TS500 Process Instrumentation Temperature Measurement
The SITRANS TS500 is an industry temperature sensor that supports a a large number of measuring tasks
ranging frombasic applications to solutions in harsh environments.
This is made possible by the modular design, allowing to customize the sensor according to individual needs.

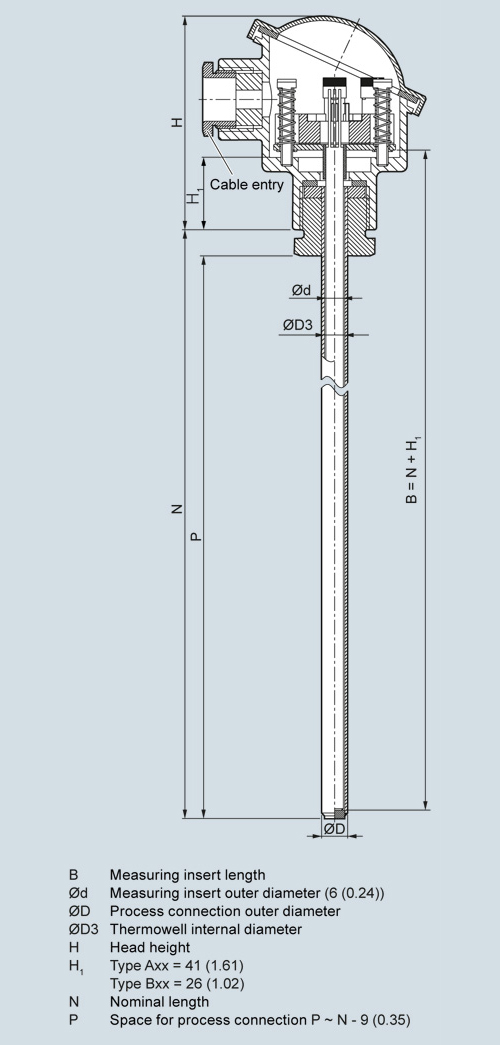

SITRANS TS500, temperature sensors for containers and pipelines, tube version for low to medium stress, without process connection,
without extension, plug-in or for use with sliding compression joints, dimensions in mm (inch)
Benefits
Output | direct sensor signal 4…20 mA (TH100/TH200) HART (TH300) PA (TH400) FF (TH400) |
|---|---|
Max. operation temperature* - measuring point:
- connection head: |
Pt 100 Basic: –50 ... +400 °C (-58 ... +752 °F) Pt 100 Extended: –196 ... +600 °C (-321 ... +1 112 °F) Thermocouple: -40 .. .+1100 °C (-40 ... +1 832 °F) (Depending on type of TC)
-40 … +100 °C (+85 °C with transmitter) |
Ingress protection | IP54-68, depending on the type of connection head and cable gland |
Approvals | ATEX, IECEx, Basis FM, Basis CSA, cCSAus, NEPSI, EAC, Det Norske Veritas Germanischer Lloyd (DNV GL), Bureau Veritas (BV), Lloyd’s Register of Shipping, American Bureau of Shipping (ABS) |
Exchangeable during operation
Wide application range due modular design
Explosions protection according ATEX and IEC EX intrinsic safety, flameproof and non-sparking
With optional local indicator
