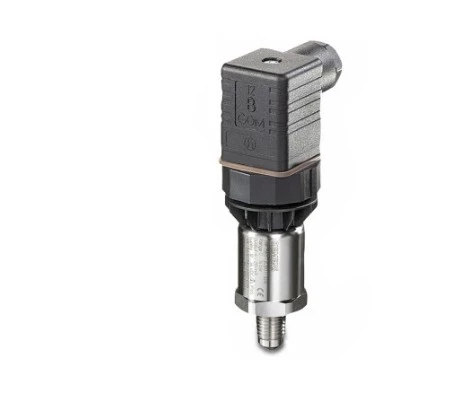

SIEMENS SITRANS P220 Process Instrumentation Pressure Measurement
The SITRANS transmitters P220 is compact single-range-transmitters for measurement of absolute and gauge pressure.
In this series we use two different kinds of pressure sensors: two stainless steel sensors and one ceramics sensor.
So the measurement of process pressure, absolute pressure and hydrostatic pressure is an easy thing.
The measured pressure will be transformed with these sensors into a 4…20-mA- resp. a 0…10-V-signal.
Benefits
* High measuring accuracy
* Rugged stainless steel enclosure
* High overload withstand capability
* For aggressive and non-aggressive media
* For measuring the pressure of liquids, gases and vapors
* Compact design
Application
The SITRANS P200 pressure transmitter for gauge and absolute pressure is used in the following industrial areas:
* Mechanical engineering
* Shipbuilding
* Power engineering
* Chemical industry
* Water supply
Design
Device structure without explosion protection
The pressure transmitter consists of a piezoresistive measuring cell with a diaphragm installed in a stainless steel enclosure.
It can be connected electrically with a device plug to EN 175301-803-A (IP65), an M12 device plug (IP67),
a cable (IP67) or a Quickon cable quick screw connection (IP67).
The output signal is between 4 and 20 mA or 0 and 10 V.
Device structure with explosion protection
The pressure transmitter consists of a piezoresistive measuring cell with a diaphragm installed in a stainless steel enclosure.
It can be connected electrically with a device plug fulfilling EN 175301-803-A (IP65) or an M12 device plug (IP67).
The output signal is between 4 and 20 mA.
