PEPPERL+FUCHS Frequency Converter with Direction and Synchronization Monitor KFU8-UFT-Ex2.D Intrinsic Safety Barriers Isolated Barriers

New & Original
KFU8-UFT-Ex2.D
PEPPERL+FUCHS Frequency Converter with Direction and Synchronization Monitor KFU8-UFT-Ex2.D Intrinsic Safety Barriers Isolated Barriers
Please contact us for more information.

PEPPERL+FUCHS Frequency Converter with Direction and Synchronization Monitor KFU8-UFT-Ex2.D Intrinsic Safety Barriers Isolated Barriers





Frequency Converter with Direction and Synchronization Monitor KFU8-UFT-Ex2.D

·         2-channel isolated barrier

·         Universal usage at different power supplies

·         Dry contact or NAMUR inputs

·         Input frequency 1 mHz ... 1 kHz

·         Current output 0/4 mA ... 20 mA

·         Relay contact and transistor output

·         Start-up override

·         Configurable by PACTware or keypad

·         Line fault detection (LFD)





Function :

This isolated barrier is used for intrinsic safety applications. It analyzes 2 digital signals (NAMUR sensor/mechanical contact) from

a hazardous area and functions as a rotation direction indicator, slip monitor, frequency monitor or synchronization monitor.

Each proximity sensor or switch controls a passive transistor output. The 2 relay outputs indicate if the input signal is above or below the trip value or the rotational direction.

The analog output can be programmed to be proportional to the input frequency or slip differential.

The unit is easily programmed by the use of a keypad located on the front of the unit or with the PACTware™ configuration software.

Line fault detection of the field current is indicated by a red LED.

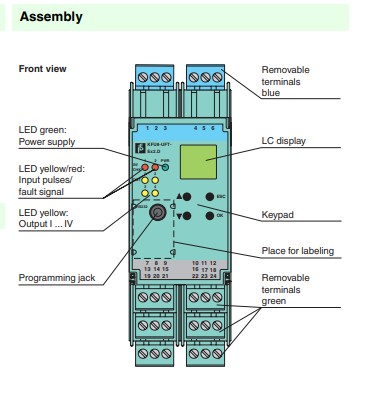

KFU8-UFT-Ex2.D .JPG



Selection models:

KFD2-UFC-Ex1.D                          KFU8-UFC-Ex1.D

KFA5-DWB-Ex1.D                         KFA6-DWB-Ex1.D

KFD2-DWB-Ex1.D                         KFD2-SR2-Ex2.W.SM

KFD2-UFT-Ex2.D                           KFU8-UFT-Ex2.D
