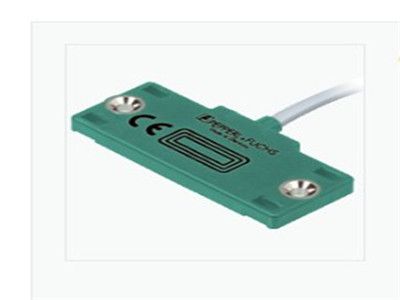

PEPPERL+FUCHS Capacitive sensor CBN10-F46-E2-10M Proximity Sensors Inductive Sensors

General specifications

Switching function    Normally open (NO)

Output type PNP

Rated operating distance 10 mm

Installation  non-flush

Output polarity  DC

Assured operating distance   0 ... 7 mm

Nominal ratings

Installation conditions

B    5 mm

C    20 mm

F    20 mm / 50 mm

Operating voltage    10 ... 30 V

Switching frequency  0 ... 5 Hz

Hysteresis   1 ... 10 typ. 5 %

Reverse polarity protection   reverse polarity protected

Short-circuit protection   pulsing

Voltage drop     ≤ 2 V

Voltage drop at IL

Voltage drop IL = 10 mA, switching element on   0.8 ... 2.2 V typ. 1.4 V

Operating current     0 ... 100 mA

Lowest operating current      0 mA

Off-state current 0 ... 0.5 mA typ. 0.01 mA

Off-state current TU =40 °C, switching element off     ≤ 100 µA

No-load supply current   ≤ 15 mA

Switching state indicator  LED, yellow
