PEPPERL+FUCHS 100% New & Original Inductive sensor NBB4-12GM30-E2 Proximity Sensors Inductive Sensors With Good discount & One Year Warranty

New & Original
NBB4-12GM30-E2
PEPPERL+FUCHS 100% New & Original Inductive sensor NBB4-12GM30-E2 Proximity Sensors Inductive Sensors With Good discount & One Year Warranty
Please contact us for more information.

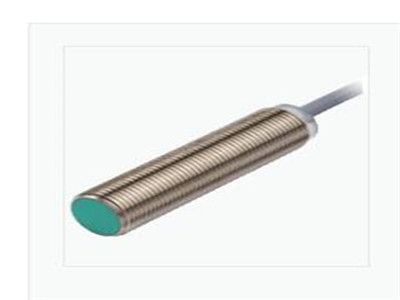

PEPPERL+FUCHS Inductive sensor NBB4-12GM30-E2 Proximity Sensors Inductive Sensors





General specifications

Switching function    Normally open (NO)

Output type PNP

Rated operating distance 4 mm

Installation  flush

Output polarity  DC

Assured operating distance   0 ... 3.24 mm

Reduction factor rAl  0.45

Reduction factor rCu 0.35

Reduction factor r304     0.7

Output type 3-wire



Nominal ratings

Operating voltage    10 ... 30 V

Switching frequency  0 ... 500 Hz

Hysteresis   typ. 5%

Reverse polarity protection   reverse polarity protected

Short-circuit protection   pulsing

Voltage drop      3 V

Operating current     0 ... 150 mA

Off-state current 0 ... 0.5 mA typ. 0.1 µA

Off-state current TU =40 °C, switching element off

No-load supply current    15 mA

Switching state indicator  Multihole-LED, yellow



Selection Models :
IA6-12GM50-IU-V1
NBB0,6-3M22-E2
NBB0,6-4GM22-E2
NBB0,8-4M25-E2
NBB0,8-4M25-E2-V3
NBB0,8-5GM25-E2
NBB0,8-5GM25-E2-V3
NBB0,8-F141-E2
NBB1,5-5GM25-E2-V3
NBB1,5-8GM40-Z0
NBB1,5-F41-E2
NBB1,5-F41-E2-V3
NBB1,5-F79-E2
NBB1-3M22-E2
NBB1-4GM22-E2
NBB10-30GM40-Z0
NBB10-30GM50-WS
NBB15-30GM50-E2
NBB15-30GM50-E2-M
NBB15-30GM50-E2-V1
NBB15-30GM50-US
NBB15-30GM50-WS
NBB15-30GM60-A2
NBB15-30GM60-A2-V1
NBB15-F148P10-E2-M
NBB2-12GM40-Z0
NBB2-12GM40-Z0-V1
NBB2-8GH20-E2-V3
NBB2-F29-A2
NBB2-F76-E2-0,5M
NBB2-V3-E2
NBB2-V3-E2-3G-3D
NBB2-V3-E2-V5
NBB20-L2-A2-V1
NBB20-L2-A2-V1-M
NBB20-L2-E2-V1
NBB20-U1-A2
NBB20-U1-E2
NBB20-U1-E2-M
NBB20-U1-UU


Inductive analog sensor IA6-12GM50-IU-V1
Inductive sensor NBB0,6-3M22-E2
Inductive sensor NBB0,6-4GM22-E2
Inductive sensor NBB0,8-4M25-E2
Inductive sensor NBB0,8-4M25-E2-V3
Inductive sensor NBB0,8-5GM25-E2
Inductive sensor NBB0,8-5GM25-E2-V3
Inductive sensor NBB0,8-F141-E2
Inductive sensor NBB1,5-5GM25-E2-V3
Inductive sensor NBB1,5-8GM40-Z0
Inductive sensor NBB1,5-F41-E2
Inductive sensor NBB1,5-F41-E2-V3
Inductive sensor NBB1,5-F79-E2
Inductive sensor NBB1-3M22-E2
Inductive sensor NBB1-4GM22-E2
Inductive sensor NBB10-30GM40-Z0
Inductive sensor NBB10-30GM50-WS
Inductive sensor NBB15-30GM50-E2
Inductive sensor NBB15-30GM50-E2-V1
Inductive sensor NBB20-U1-Z2
Inductive sensor NBB20-U1K-N0
Inductive sensor NBB3-V3-Z4
Inductive sensor NBB4-12GM30-E2
