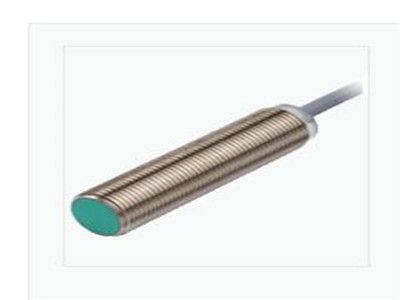

PEPPERL+FUCHS Inductive sensor NBB4-12GM50-E2-M Proximity Sensors Inductive Sensors

General specifications

Switching function    Normally open (NO)

Output type PNP

Rated operating distance 4 mm

Installation  flush

Output polarity  DC

Assured operating distance   0 ... 3.24 mm

Actuating element    mild steel, e. g. 1.0037, SR235JR (formerly St37-2)

12 mm x 12 mm x 1 mm

Reduction factor rAl  0.45

Reduction factor rCu 0.35

Reduction factor r304     0.75

Reduction factor rBrass   0.45

Output type 3-wire

Nominal ratings

Operating voltage    5 ... 60 V

Switching frequency  0 ... 2500 Hz

Hysteresis   typ. 5 %

Reverse polarity protection   reverse polarity protected

Short-circuit protection   pulsing

Inductive overvoltage protection yes

Surge suppression    yes

Voltage drop     ≤ 2 V

Rated insulation voltage  60 V

Operating current     0 ... 200 mA

Off-state current 0 ... 0.5 mA typ. 0.1 µA at 25 °C

No-load supply current   ≤ 7 mA

Switching state indicator  LED, yellow
