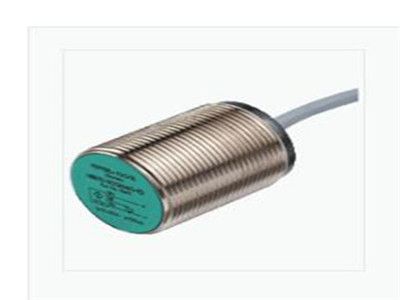

PEPPERL+FUCHS Original Inductive sensor NBB10-30GM50-WS Proximity Sensors Inductive Sensors With Very Competitive Price & One Year Warranty

New & Original
NBB10-30GM50-WS
PEPPERL+FUCHS Original Inductive sensor NBB10-30GM50-WS Proximity Sensors Inductive Sensors With Very Competitive Price & One Year Warranty
Please contact us for more information.

PEPPERL+FUCHS Inductive sensor NBB10-30GM50-WS Proximity Sensors Inductive Sensors





General specifications

Switching function    Normally open (NO)

Output type Two-wire

Rated operating distance 10 mm

Installation  flush

Output polarity  AC

Assured operating distance   0 ... 8.1 mm

Actual operating distance      9 ... 11 mm

Reduction factor rAl  0.33

Reduction factor rCu 0.28

Reduction factor r304     0.81

Output type 2-wire



Nominal ratings

Operating voltage    20 ... 253 V

Switching frequency  0 ... 20 Hz

Hysteresis   typ. 5 %

Reverse polarity protection   reverse polarity tolerant

Voltage drop     < 5 V (IL > 50 mA); < 8 V (IL < 50 mA)

Momentary current

(20 ms, 0.1 Hz) 0 ... 1600 mA

Operating current     5 ... 200 mA

Off-state current 0 ... 1.7 mA

Operating voltage indicator   LED, green

Switching state indicator  LED, yellow



Selection Models :
IA6-12GM50-IU-V1
NBB0,6-3M22-E2
NBB0,6-4GM22-E2
NBB0,8-4M25-E2
NBB0,8-4M25-E2-V3
NBB0,8-5GM25-E2
NBB0,8-5GM25-E2-V3
NBB0,8-F141-E2
NBB1,5-5GM25-E2-V3
NBB1,5-8GM40-Z0
NBB1,5-F41-E2
NBB1,5-F41-E2-V3
NBB1,5-F79-E2
NBB1-3M22-E2
NBB1-4GM22-E2
NBB10-30GM40-Z0
NBB10-30GM50-WS
NBB15-30GM50-E2
NBB15-30GM50-E2-M
NBB15-30GM50-E2-V1
NBB15-30GM50-US
NBB15-30GM50-WS
NBB15-30GM60-A2
NBB15-30GM60-A2-V1
NBB15-F148P10-E2-M
NBB2-12GM40-Z0
NBB2-12GM40-Z0-V1
NBB2-8GH20-E2-V3
NBB2-F29-A2
NBB2-F76-E2-0,5M
NBB2-V3-E2
NBB2-V3-E2-3G-3D
NBB2-V3-E2-V5
NBB20-L2-A2-V1
NBB20-L2-A2-V1-M
NBB20-L2-E2-V1
NBB20-U1-A2
NBB20-U1-E2
NBB20-U1-E2-M
NBB20-U1-UU


Inductive analog sensor IA6-12GM50-IU-V1
Inductive sensor NBB0,6-3M22-E2
Inductive sensor NBB0,6-4GM22-E2
Inductive sensor NBB0,8-4M25-E2
Inductive sensor NBB0,8-4M25-E2-V3
Inductive sensor NBB0,8-5GM25-E2
Inductive sensor NBB0,8-5GM25-E2-V3
Inductive sensor NBB0,8-F141-E2
Inductive sensor NBB1,5-5GM25-E2-V3
Inductive sensor NBB1,5-8GM40-Z0
Inductive sensor NBB1,5-F41-E2
Inductive sensor NBB1,5-F41-E2-V3
Inductive sensor NBB1,5-F79-E2
Inductive sensor NBB1-3M22-E2
Inductive sensor NBB1-4GM22-E2
Inductive sensor NBB10-30GM40-Z0
Inductive sensor NBB10-30GM50-WS
