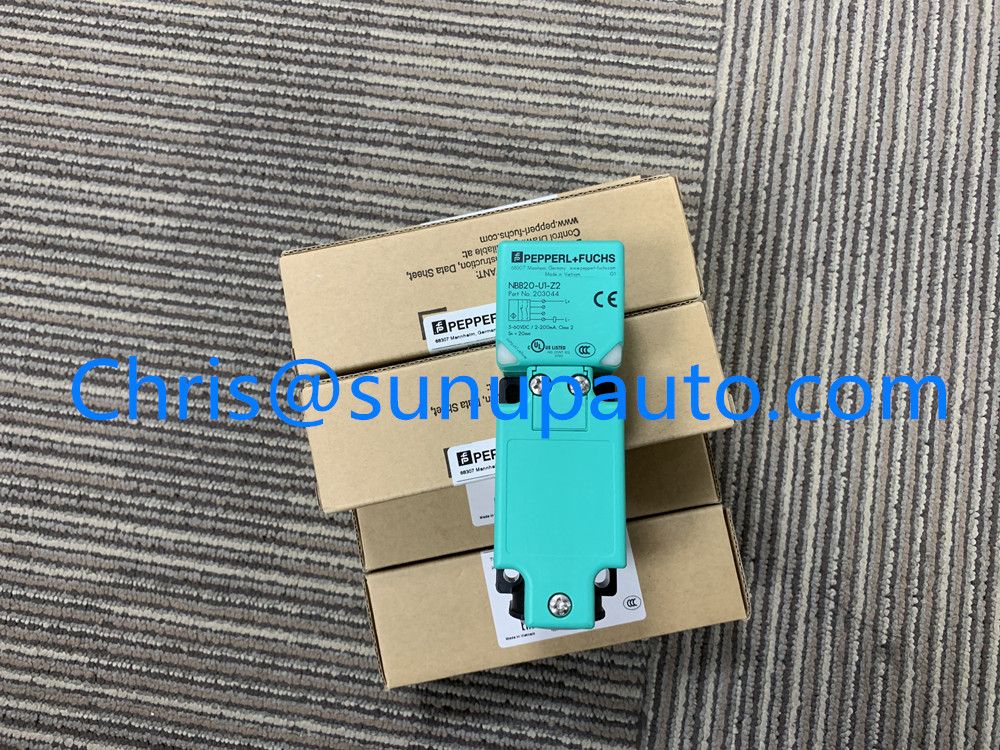

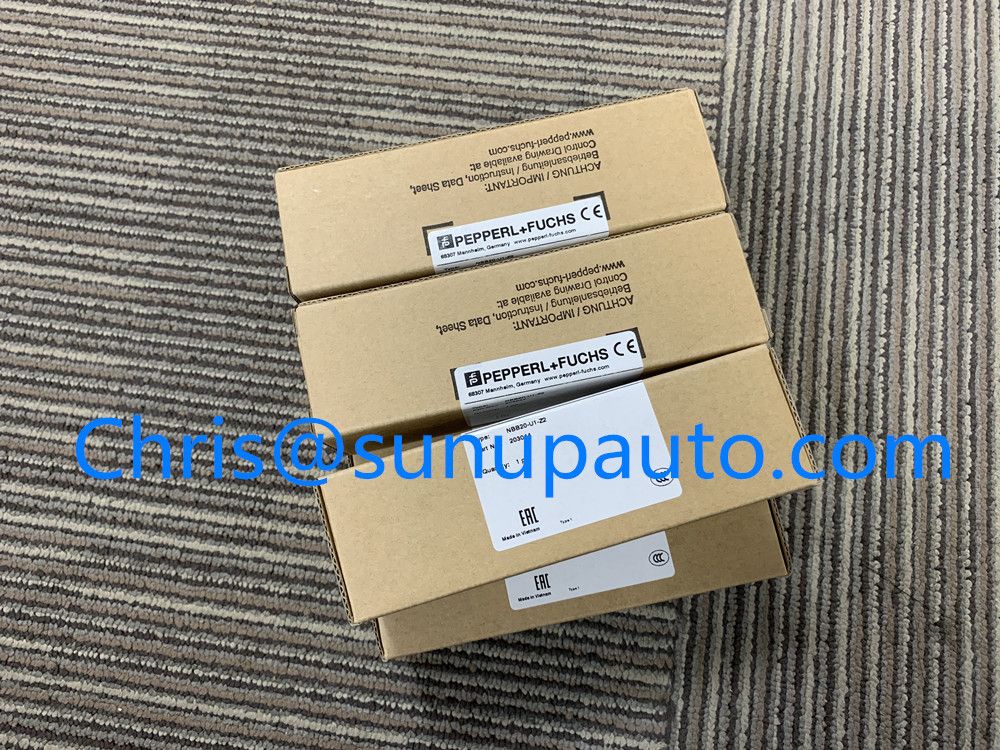

PEPPERL+FUCHS Hot Sale Inductive sensor NBB20-U1-Z2 Proximity Sensors Inductive Sensors 100% Original & One Year Warranty

New & Original
NBB20-U1-Z2
PEPPERL+FUCHS Hot Sale Inductive sensor NBB20-U1-Z2 Proximity Sensors Inductive Sensors 100% Original & One Year Warranty
Please contact us for more information.

PEPPERL+FUCHS Inductive sensor NBB20-U1-Z2 Proximity Sensors Inductive Sensors









General specifications

Switching function    Normally open/closed (NO/NC)

Output type Two-wire

Rated operating distance 20 mm

Installation  flush

Output polarity  DC

Assured operating distance   0 ... 16.2 mm

Actual operating distance      18 ... 22 mm typ. 20 mm

Reduction factor rAl  0.3

Reduction factor rCu 0.3

Reduction factor r304     0.7

Output type 2-wire



Nominal ratings

Operating voltage    5 ... 60 V DC

Switching frequency  0 ... 250 Hz

Hysteresis   typ. 5 %

Reverse polarity protection   reverse polarity tolerant

Short-circuit protection   yes

Voltage drop      5 V

Voltage drop at IL

Voltage drop IL = 100 mA, switching element on  ... 5 V

Operating current     2 ... 200 mA

Off-state current 0 ... 0.5 mA

Switching state indicator  2 LED, yellow





Selection Models :
IA6-12GM50-IU-V1
NBB0,6-3M22-E2
NBB0,6-4GM22-E2
NBB0,8-4M25-E2
NBB0,8-4M25-E2-V3
NBB0,8-5GM25-E2
NBB0,8-5GM25-E2-V3
NBB0,8-F141-E2
NBB1,5-5GM25-E2-V3
NBB1,5-8GM40-Z0
NBB1,5-F41-E2
NBB1,5-F41-E2-V3
NBB1,5-F79-E2
NBB1-3M22-E2
NBB1-4GM22-E2
NBB10-30GM40-Z0
NBB10-30GM50-WS
NBB15-30GM50-E2
NBB15-30GM50-E2-M
NBB15-30GM50-E2-V1
NBB15-30GM50-US
NBB15-30GM50-WS
NBB15-30GM60-A2
NBB15-30GM60-A2-V1
NBB15-F148P10-E2-M
NBB2-12GM40-Z0
NBB2-12GM40-Z0-V1
NBB2-8GH20-E2-V3
NBB2-F29-A2
NBB2-F76-E2-0,5M
NBB2-V3-E2
NBB2-V3-E2-3G-3D
NBB2-V3-E2-V5
NBB20-L2-A2-V1
NBB20-L2-A2-V1-M
NBB20-L2-E2-V1
NBB20-U1-A2
NBB20-U1-E2
NBB20-U1-E2-M
NBB20-U1-UU


Inductive analog sensor IA6-12GM50-IU-V1
Inductive sensor NBB0,6-3M22-E2
Inductive sensor NBB0,6-4GM22-E2
Inductive sensor NBB0,8-4M25-E2
Inductive sensor NBB0,8-4M25-E2-V3
Inductive sensor NBB0,8-5GM25-E2
Inductive sensor NBB0,8-5GM25-E2-V3
Inductive sensor NBB0,8-F141-E2
Inductive sensor NBB1,5-5GM25-E2-V3
Inductive sensor NBB1,5-8GM40-Z0
Inductive sensor NBB1,5-F41-E2
Inductive sensor NBB1,5-F41-E2-V3
Inductive sensor NBB1,5-F79-E2
Inductive sensor NBB1-3M22-E2
Inductive sensor NBB1-4GM22-E2
Inductive sensor NBB10-30GM40-Z0
Inductive sensor NBB10-30GM50-WS
Inductive sensor NBB15-30GM50-E2
Inductive sensor NBB15-30GM50-E2-V1
Inductive sensor NBB20-U1-Z2



NBB20-U1-Z2


NBB20-U1-Z2 Details
