PEPPERL+FUCHS 100% New & Original Capacitive sensor CBB8-18GS75-E2 Proximity Sensors Inductive Sensors With Very Good discount

New & Original
CBB8-18GS75-E2
PEPPERL+FUCHS 100% New & Original Capacitive sensor CBB8-18GS75-E2 Proximity Sensors Inductive Sensors With Very Good discount
Please contact us for more information.

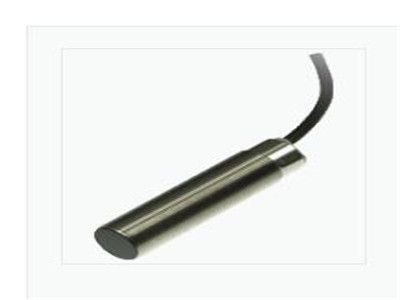

PEPPERL+FUCHS Capacitive sensor CBB8-18GS75-E2 Proximity Sensors Inductive Sensors





General specifications

Switching function    Normally open (NO)

Output type PNP

Rated operating distance 1 ... 8 mm

Installation  flush

Output polarity  DC



Nominal ratings

Operating voltage    10 ... 30 V

Switching frequency  0 ... 100 Hz

Reverse polarity protection   reverse polarity protected

Short-circuit protection   pulsing

Voltage drop      1.5 V

Temperature drift     max. 20 % at -5 ... 55 °C (23 ... 131 °F)

Operating current     0 ... 100 mA

No-load supply current    18 mA

Indicators/operating means

LED green   Operating display

LED yellow  indication switching state

Potentiometer    sensitivity adjustment



Selection Models :
IA6-12GM50-IU-V1
NBB0,6-3M22-E2
NBB0,6-4GM22-E2
NBB0,8-4M25-E2
NBB0,8-4M25-E2-V3
NBB0,8-5GM25-E2
NBB0,8-5GM25-E2-V3
NBB0,8-F141-E2
NBB1,5-5GM25-E2-V3
NBB1,5-8GM40-Z0
NBB1,5-F41-E2
NBB1,5-F41-E2-V3
NBB1,5-F79-E2
NBB1-3M22-E2
NBB1-4GM22-E2
NBB10-30GM40-Z0
NBB10-30GM50-WS
NBB15-30GM50-E2
NBB15-30GM50-E2-M
NBB15-30GM50-E2-V1
NBB15-30GM50-US
NBB15-30GM50-WS
NBB15-30GM60-A2
NBB15-30GM60-A2-V1
NBB15-F148P10-E2-M
NBB2-12GM40-Z0
NBB2-12GM40-Z0-V1
NBB2-8GH20-E2-V3
NBB2-F29-A2
NBB2-F76-E2-0,5M
NBB2-V3-E2
NBB2-V3-E2-3G-3D
NBB2-V3-E2-V5
NBB20-L2-A2-V1
NBB20-L2-A2-V1-M
NBB20-L2-E2-V1
NBB20-U1-A2
NBB20-U1-E2
NBB20-U1-E2-M
NBB20-U1-UU


Inductive analog sensor IA6-12GM50-IU-V1
Inductive sensor NBB0,6-3M22-E2
Inductive sensor NBB0,6-4GM22-E2
Inductive sensor NBB0,8-4M25-E2
Inductive sensor NBB0,8-4M25-E2-V3
Inductive sensor NBB0,8-5GM25-E2
Inductive sensor NBB0,8-5GM25-E2-V3
Inductive sensor NBB0,8-F141-E2
Inductive sensor NBB1,5-5GM25-E2-V3
Inductive sensor NBB1,5-8GM40-Z0
Inductive sensor NBB1,5-F41-E2
Inductive sensor NBB1,5-F41-E2-V3
Inductive sensor NBB1,5-F79-E2
Inductive sensor NBB1-3M22-E2
Inductive sensor NBB1-4GM22-E2
Inductive sensor NBB10-30GM40-Z0
Inductive sensor NBB10-30GM50-WS
Inductive sensor NBB15-30GM50-E2
Inductive sensor NBB15-30GM50-E2-V1
Inductive sensor NBB20-U1-Z2
Inductive sensor NBB20-U1K-N0
Inductive sensor NBB3-V3-Z4
Inductive sensor NBB4-12GM30-E2
Inductive sensor NBB4-12GM30-E2-V1
Inductive sensor NBB4-12GM50-E2
Inductive sensor NBB4-12GM50-E2-M
Capacitive sensor CBB4-12GH60-E2-V1
Capacitive sensor CBB4-12GH70-E2
Capacitive sensor CBB8-18GS75-E2
