PEPPERL+FUCHS 100% New & Original Magnetic field sensor MMB60-12H50-E2-V1 Proximity Sensors Industrial Sensors With very Competitive Price

New & Original
MMB60-12H50-E2-V1
PEPPERL+FUCHS 100% New & Original Magnetic field sensor MMB60-12H50-E2-V1 Proximity Sensors Industrial Sensors With very Competitive Price
Please contact us for more information.

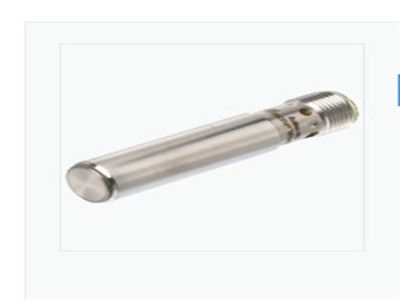

PEPPERL+FUCHS Magnetic field sensor MMB60-12H50-E2-V1 Proximity Sensors Industrial Sensors







General specifications

Switching function    Normally open (NO)

Output type PNP

Rated operating distance 60 mm

Installation  flush

Output polarity  DC

Actuating element    magnetic

Output type 3-wire



Nominal ratings

Operating voltage    10 ... 30 V DC

Switching frequency  5000 Hz

Hysteresis   1 ... 10 %

Reverse polarity protection   reverse polarity protected

Short-circuit protection   pulsing

Voltage drop      2.5 V DC

Operating current      100 mA

Current consumption      < 10 mA

Indicators/operating means

Operation indicator   4-way LED

Switching state indicator: yellow

Approvals and certificates

UL approval cULus Listed, General Purpose

CCC approval    CCC approval / marking not required for products rated 36 V



Selection Models :
IA6-12GM50-IU-V1
NBB0,6-3M22-E2
NBB0,6-4GM22-E2
NBB0,8-4M25-E2
NBB0,8-4M25-E2-V3
NBB0,8-5GM25-E2
NBB0,8-5GM25-E2-V3
NBB0,8-F141-E2
NBB1,5-5GM25-E2-V3
NBB1,5-8GM40-Z0
NBB1,5-F41-E2
NBB1,5-F41-E2-V3
NBB1,5-F79-E2
NBB1-3M22-E2
NBB1-4GM22-E2
NBB10-30GM40-Z0
NBB10-30GM50-WS
NBB15-30GM50-E2
NBB15-30GM50-E2-M
NBB15-30GM50-E2-V1
NBB15-30GM50-US
NBB15-30GM50-WS
NBB15-30GM60-A2
NBB15-30GM60-A2-V1
NBB15-F148P10-E2-M
NBB2-12GM40-Z0
NBB2-12GM40-Z0-V1
NBB2-8GH20-E2-V3
NBB2-F29-A2
NBB2-F76-E2-0,5M
NBB2-V3-E2
NBB2-V3-E2-3G-3D
NBB2-V3-E2-V5
NBB20-L2-A2-V1
NBB20-L2-A2-V1-M
NBB20-L2-E2-V1
NBB20-U1-A2
NBB20-U1-E2
NBB20-U1-E2-M
NBB20-U1-UU
MB60-12GM50-E2
MB60-8GM50-E2
MB60-8GM50-E2-V3
MC60-12GM50-1N
MC60-12GM50-1N-V1
MB-F32-A2
MB-F32-A2-V1
MB80-12GM50-E0-PUR
MJ35-F12-1N
MMB60-12GH50-E2-V1


Inductive analog sensor IA6-12GM50-IU-V1
Inductive sensor NBB0,6-3M22-E2
Inductive sensor NBB0,6-4GM22-E2
Inductive sensor NBB0,8-4M25-E2
Inductive sensor NBB0,8-4M25-E2-V3
Inductive sensor NBB0,8-5GM25-E2
Inductive sensor NBB0,8-5GM25-E2-V3
Inductive sensor NBB0,8-F141-E2
Inductive sensor NBB1,5-5GM25-E2-V3
Inductive sensor NBB1,5-8GM40-Z0
Inductive sensor NBB1,5-F41-E2
Inductive sensor NBB1,5-F41-E2-V3
Inductive sensor NBB1,5-F79-E2
Inductive sensor NBB1-3M22-E2
Inductive sensor NBB1-4GM22-E2
Inductive sensor NBB10-30GM40-Z0
Inductive sensor NBB10-30GM50-WS
Inductive sensor NBB15-30GM50-E2
Inductive sensor NBB15-30GM50-E2-V1
Inductive sensor NBB20-U1-Z2
Inductive sensor NBB20-U1K-N0
Inductive sensor NBB3-V3-Z4
Inductive sensor NBB4-12GM30-E2
Inductive sensor NBB4-12GM30-E2-V1
Inductive sensor NBB4-12GM50-E2
Inductive sensor NBB4-12GM50-E2-M
Capacitive sensor CBB4-12GH60-E2-V1
Capacitive sensor CBB4-12GH70-E2
Capacitive sensor CBB8-18GS75-E2
Capacitive sensor CBB8-18GS75-E2-V1
Capacitive sensor CBN10-F46-E2
Capacitive sensor CBN15-18GS75-E2
Capacitive sensor CBN15-18GS75-E2-V1
Capacitive sensor CBN2-F46-E2
Capacitive sensor CBN5-F46-E2
Capacitive sensor CBN8-12GH60-E2-V1
Capacitive sensor CCN15-30GS60-A2
Capacitive sensor CCN15-30GS60-A2-V1
Capacitive sensor CCN15-30GS60-E2
Capacitive sensor CCN15-30GS60-E2-V1
Capacitive sensor CBN12-F64-E2
Capacitive sensor CBB10-30GKK-A2
Capacitive sensor CBB10-30GKK-W
Capacitive sensor CBB4-12GH70-E0
Capacitive sensor CBB8-18GK75-E2-V1
Capacitive sensor CBN10-F46-E2-10M
Magnetic field sensor MB60-12GM50-E2
Magnetic field sensor MB60-8GM50-E2
Magnetic field sensor MC60-12GM50-1N-V1
Magnetic field sensor MB-F32-A2 Proximity
Magnetic field sensor MB80-12GM50-E0-PUR
Magnetic field sensor MJ35-F12-1N
Magnetic field sensor MMB60-12GH50-E2-V1
Magnetic field sensor MMB70-18GH50-E2-V1
Magnetic field sensor 40FR1-3
Magnetic field sensor 40FR1-33
Magnetic field sensor 40FY26-020
Magnetic field sensor 40FY26-33
Magnetic field sensor 40FY28-020
Magnetic field sensor 4FR1-6
Magnetic field sensor 50FR2-3-1
Magnetic field sensor 50FY41-12
Magnetic field sensor 6FR1-6
Magnetic field sensor MJ35-F12-1N-5M
Magnetic field sensor MMB60-12H50-E2-V1
