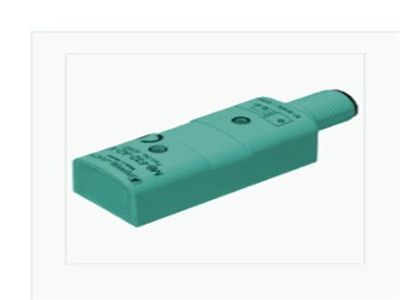

PEPPERL+FUCHS Magnetic field sensor MB-F32-A2-V1 Proximity Sensors Industrial Sensors

General specifications

Switching function    complementary

Output type PNP

Installation  on the cylinder

Output polarity  DC

Switching range  typ. 50 mm

Nominal ratings

Operating voltage    10 ... 30 V DC

Reverse polarity protection   reverse polarity protected

Short-circuit protection   pulsing

Voltage drop     ≤ 1.5 V

Operating current     0 ... 100 mA

No-load supply current   ≤ 30 mA
