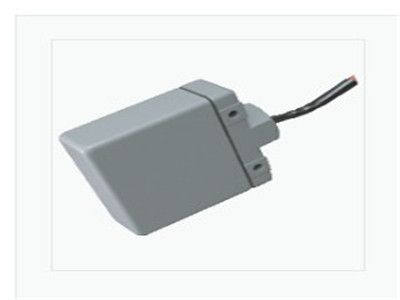

PEPPERL+FUCHS Magnetic field sensor 4FR1-6 Proximity Sensors Industrial Sensors

General specifications

Switching function    Normally open (NO)

Output type Reed Contact

Rated operating distance 12.7 mm

Installation  non-flush

Mechanical life   5 x 107 switching cycles

Nominal ratings

Switching frequency  100 Hz

Repeat accuracy ≤ 0.13 mm

No-load supply current   ≤ 50 mA

Reed bounce time    max. 0.5 ms

Electrical specifications

Electrical rating   AC supply: 15 VA, 500 mA, 280 V RMS

DC supply: 15 W, 500 mA, 400 V DC

Ambient conditions

Ambient temperature     -20 ... 83 °C (-4 ... 181.4 °F)
