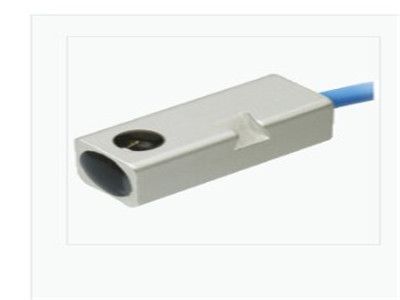

PEPPERL+FUCHS Magnetic field sensor MJ35-F12-1N Proximity Sensors Industrial Sensors

General specifications

Switching function    Normally open (NO)

Output type NAMUR

Rated operating distance 35 mm

Installation  flush

Assured operating distance   0 ... 35 mm

Output type 2-wire

Nominal ratings

Nominal voltage 8.2 V (Ri approx. 1 kΩ)

Switching frequency  0 ... 5000 Hz

Current consumption

Magnet detected      ≥ 3 mA

Magnet not detected ≤ 1 mA

Switching state indicator  LED, yellow
