PEPPERL+FUCHS 100% New & Original Palm Button PB1-010-9 With Very good discount & one year warranty for sale contact with me to know more ~
- Product description
- Contact us

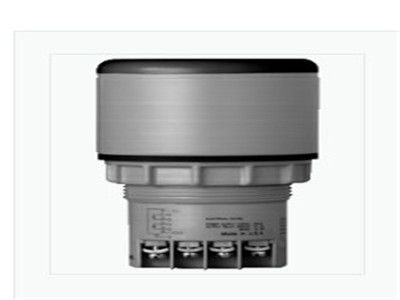

PEPPERL+FUCHS Palm Button PB1-010-9
Product Description
Palm Button
General specifications
Description hand sensitive actuation
Nominal ratings
Operating voltage 120 V AC / 45 - 60 Hz
Current consumption 40 mA
Indicators/operating means
Switching state 1 LED
Output
Number/Type 2 NO; 2 NC
Output type Contact set ;
Relay output
(contacts are one-way guided)
Switching voltage max. 250 V AC
Switching current 1 A AC/DC ( resistive load and inductive load )
Switch-on delay ≤ 60 ms
Switch-off delay ≤ 80 ms
Mechanical life ≥ 5 x 107
Electrical life ≥ 5 x 106
Electromagnetic compatibility
Electrostatic discharge
Contact discharging 8 kV
Electromagnetic fields
Radio frequency immunity IEC61000-4-3 10 V/m , see note 1
Burst IEC 61000-4-4 4 kV
Surge IEC 61000-4-5 symmetrical: 1000 V
asymmetrical: 2000 V
Conducted noise immunity IEC 61000-4-6 10 V rms , see note 1
Approvals and certificates
UL approval UL 991
CSA approval CSA C22.2, No. 14
Ambient conditions
Ambient temperature -18 ... 50 °C (0 ... 122 °F)
Mechanical specifications
Connection type screw terminals
Degree of protection IP64
Material Palm Button : Noryl N190
Protective cover Noryl N190
Note Palm Button
As limited space & rules here can't show fully information about price & Brand ,
More details need checking , pls feel free to contact with me :-)
